Cold Box Core Making Machine , Foundry Core Making Machines For Foundry Industry

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Model Number: HZ-360-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/per month

Detail Information

Max.weight Of Sand Core: Sand Core Making Machine Max. Size Of Core Bax: 450x350x200mm
Heating Power: 12.8KW Downward Strake Of Ejection Head: ≤30mm
Stake Of Mold Opending: ≤300mm Max. Stake Of Core-pull: 150mm
Coneyor Belt: 2200x450x100 Total Power: 13.2KW
Rising Angke Of Conveyor: 2°-4° Conveying Speed: 72mm/s
Net Weight: 1650KG
High Light:

shell core shooter machine

,

cold box core shooter machine

Product Description

Cold Box Core Making Machine , Foundry Core Making Machines For Foundry Industry

Introduction of the function

Core shooting machine is the use of compressed air will be evenly shot into the sand box pre-compaction, and then apply pressure for compaction.In common use, there are vertical parting box - less injection molding machine and horizontal parting box ejection molding machine.Vertical parting no box injection molding machine molding without sand box, sand directly shot into the modeling room with a template, the sand mold size precision is high, sand box on both sides of the cavity, high productivity, but the core is difficult, strict requirements on the quality of sand.The horizontal parting box ejection molding machine USES the sand box to carry on the modelling, after the sand mold is made, the mold is closed to take off the box, the lower core is convenient, the productivity is high.

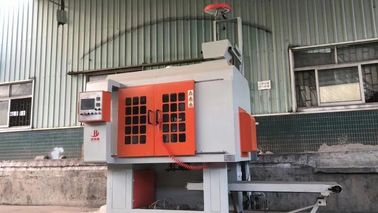

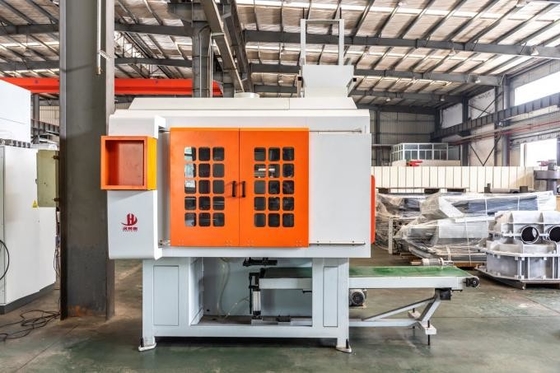

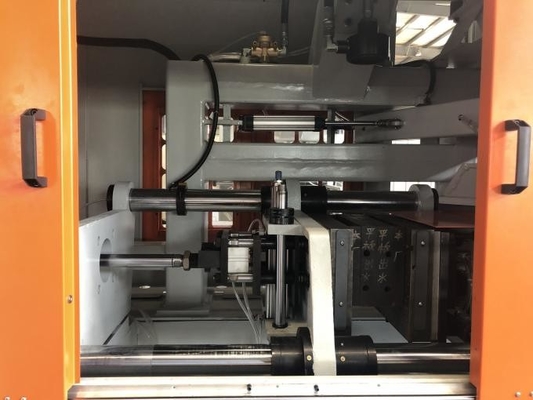

HZ 360-HS core shooting machine is a kind of automatic core shooting machine with the functions of vertical parting, full automatic, down-turning die, conveyor belt to convey sand core and automatic mixed sand lifting. It is suitable for small and medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic industries. It also applied to the hot core sand and coated sand of furan resin series hot box sand and urea-formaldehyde resin series. It is especially suitable for copper and aluminum casting industry, which can meet the core-making requirements of the core-shooting process with three-component resin, complex core shape and low structural strength.



Cold Box Core Making Machine , Foundry Core Making Machines For Foundry Industry 0Cold Box Core Making Machine , Foundry Core Making Machines For Foundry Industry 1
