| Brand Name: | DZ |
| Model Number: | NC-62/64 |
| MOQ: | 1Set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

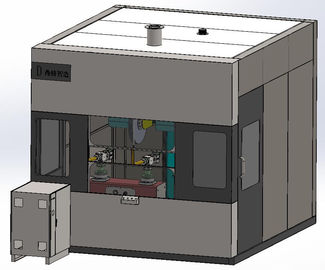

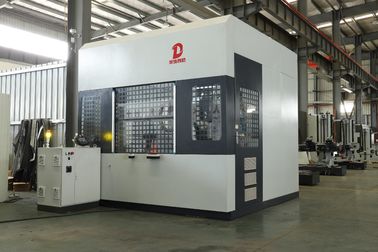

Custom Automatic Die Casting Machine , Industrial Metal Polishing Machine
- Electronic polishing
- Flexible production
- Automatic compensation of wear of the disc
- Automatic polishing pressure control
- Automatic polishing compound application
- Transfer by rotary table
- 6 CNC axes in each station
- High production machine
be mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories.To fulfill the different capacity requirement of customers, we have 2 station and 4 stantion models for customer options.
| Code | Item | Specifications-2station |
Specifications-4station |
| 1 | Dimensions (L*W*H) | 3000*3100*2900mm | 4400*3400*2900 |
| 2 | Machine Power | 16.5KW | 35KW |
| 3 | Rated Voltage | 380V | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
400mm |
| 6 | X-Axis travel (mm) | 1200 | 1200 |
| 7 | Y-Axis travel (mm) | 1100 | 1100 |
| 8 | Z-Axis travel (mm) | 700 | 700 |
| 9 | U-Axis travel (mm) | ±90° | ±90° |
| 10 | V-Axis travel (mm) | ±360° | ±360° |
| 11 | W-Axis travel (mm) | ±360° | ±360° |
|
|
