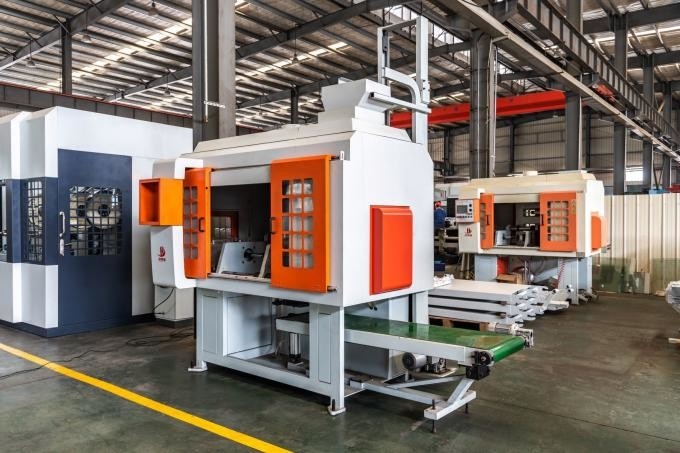

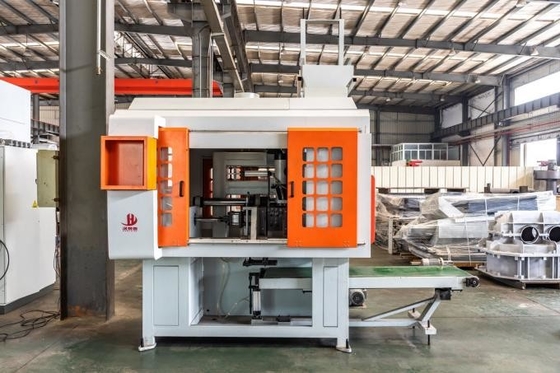

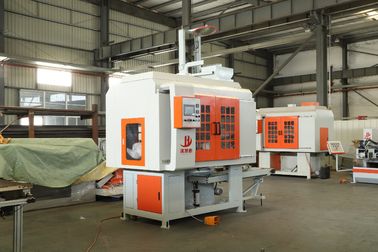

Double Head Sand Core Shooting Machine 3500*1480*3400mm Dimension CE Approved

China Double Head Sand Core Shooting Machine 3500*1480*3400mm Dimension CE Approved supplier
Double Head Sand Core Shooting Machine 3500*1480*3400mm Dimension CE Approved supplier Double Head Sand Core Shooting Machine 3500*1480*3400mm Dimension CE Approved supplier

Large Image :  Double Head Sand Core Shooting Machine 3500*1480*3400mm Dimension CE Approved

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ 360-HS

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: wood
Delivery Time: 15work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Sand Core Shooting Machine Max. Cor Box Size(L*W*H): (450*330*220)mm
Heating Plate(L*W): (400*300)mm Heating Power: 9.6kw
Clamping Stroke Of The Shooting Head: ≤30mm Die-opening Stroke: ≤300mm
Conveyor Belt(L*W*H): (2200*450*100)mm Conveyor Rising Angle: 2°~4°
Machine Dimension(L*W*H): (3500*1480*3400)mm Lifting Speed(single Cycle): 35s

Double Head Sand Core Shooting Machine 3500*1480*3400mm Dimension CE Approved

Machine construction features

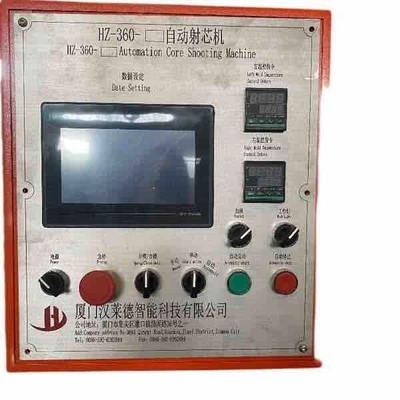

1. human-machine interface and imported high quality electronic control and pneumatic components to ensure accurate and reliable control and easy operation.

2. there are three modes: manual, single action and automatic.

3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to manually clean.

4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.

5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold. If you do not use core pulling, close the core pulling switch.

6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.

7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.

Machine Application and Scope of Application

HZ 360-HS core shooting machine is a kind of automatic core shooting machine with the functions of vertical parting, full automatic, down-turning die, conveyor belt to convey sand core and automatic mixed sand lifting. It is suitable for small and medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic industries. It also applied to the hot core sand and coated sand of furan resin series hot box sand and urea-formaldehyde resin series. It is especially suitable for copper and aluminum casting industry, which can meet the core-making requirements of the core-shooting process with three-component resin, complex core shape and low structural strength.





Double Head Sand Core Shooting Machine 3500*1480*3400mm Dimension CE Approved
