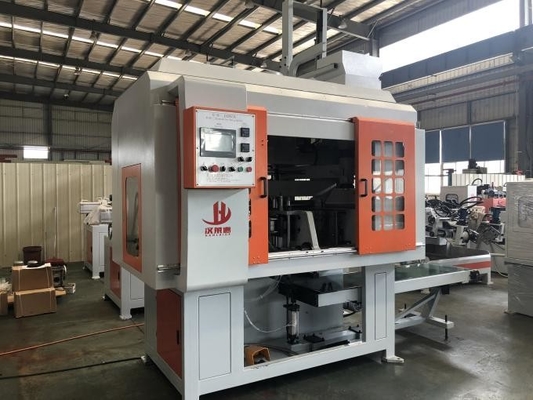

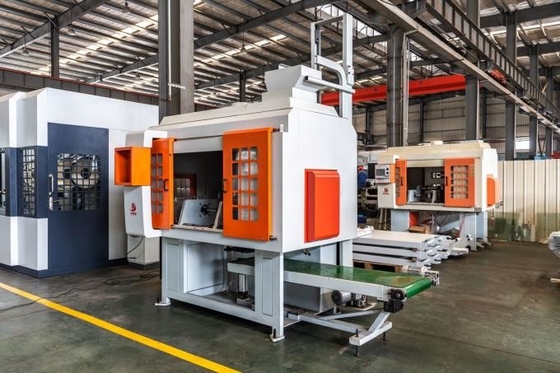

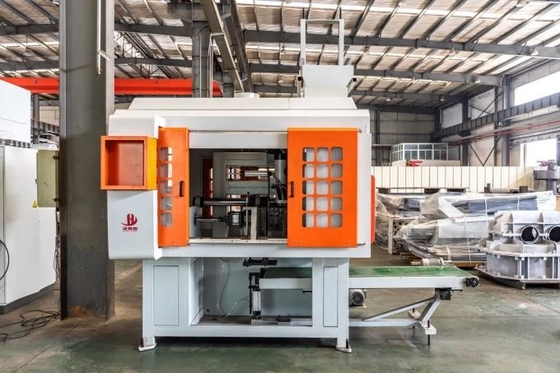

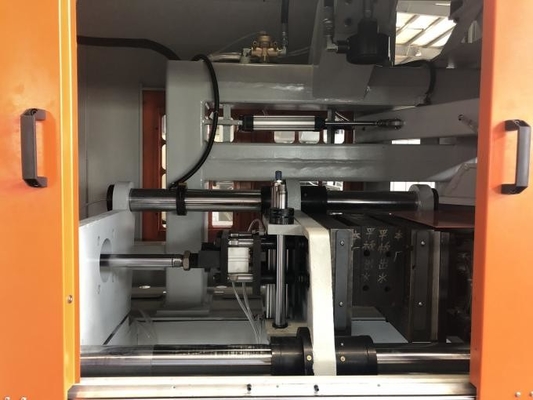

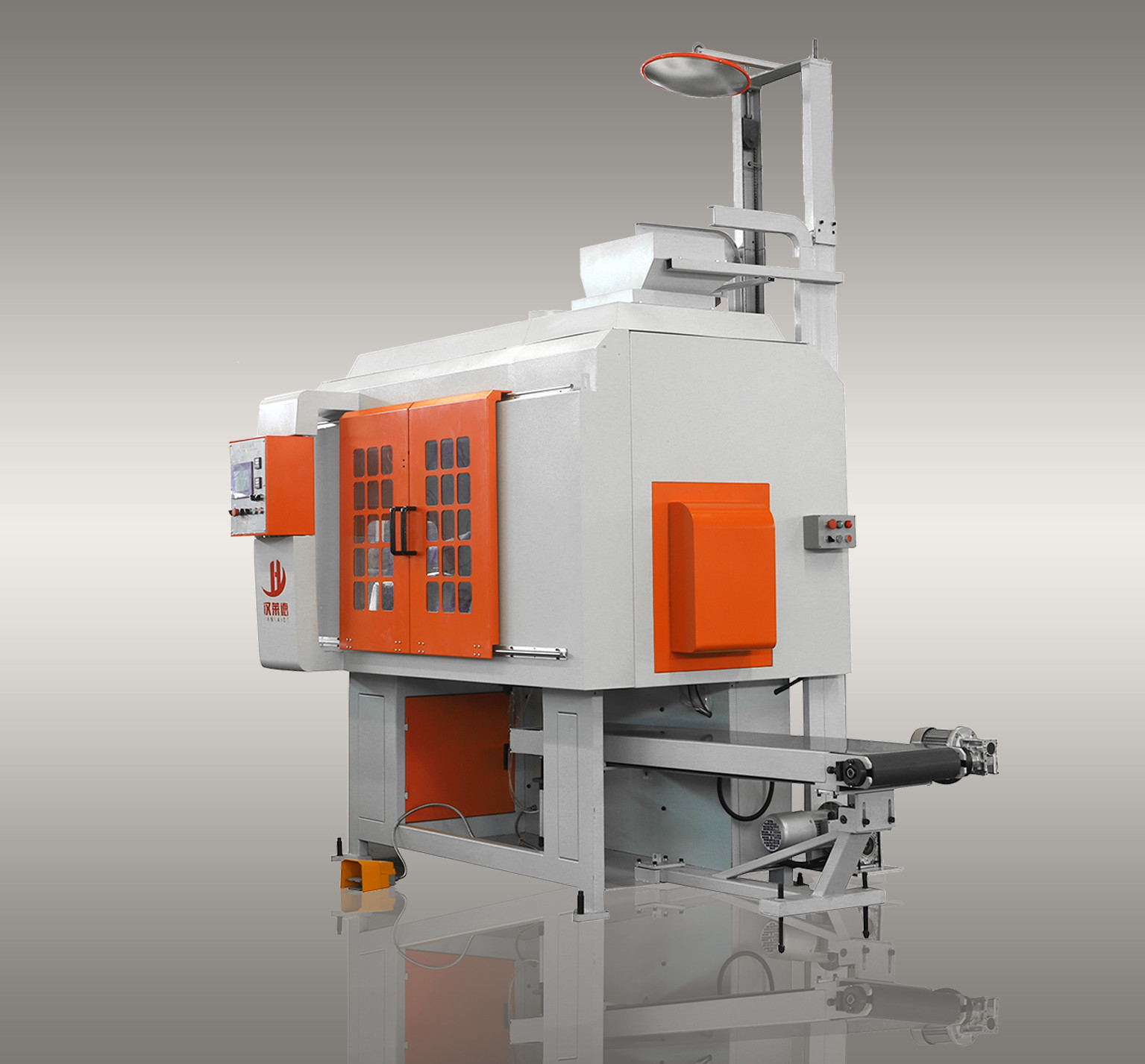

High Efficiency Sand Core Shooting Machine For Valve / Faucet / Hardware

China High Efficiency Sand Core Shooting Machine For Valve / Faucet / Hardware supplier

Large Image :  High Efficiency Sand Core Shooting Machine For Valve / Faucet / Hardware

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ 360-HS

Payment & Shipping Terms:

Minimum Order Quantity: 1Set
Price: US $10000-16000
Packaging Details: wood
Delivery Time: 15work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100sets /per momth
Contact Now
Detailed Product Description
Condition: New After-sales Servie: Hine Foundry: Engineers Available To Service Machinery Overseas
Feature: Sand Core Shooting Making Machine Technology: Resin Sand Technology
Name: Sand Core Making Machine

suitable for small and medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic industries

Machine Application and Scope of Application

HZ 360-HS core shooting machine is a kind of automatic core shooting machine with the functions of vertical parting, full automatic, down-turning die, conveyor belt to convey sand core and automatic mixed sand lifting. It is suitable for small and medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic industries. It also applied to the hot core sand and coated sand of furan resin series hot box sand and urea-formaldehyde resin series. It is especially suitable for copper and aluminum casting industry, which can meet the core-making requirements of the core-shooting process with three-component resin, complex core shape and low structural strength.





 Technical Parameters

Code
 Item Specification
1  Max. Weight of Sand Core 8kg
2



Max. Size of Core Box ( L x W x H)

(450*330*220)mm
3
Heating Plate ( L x W)
(400*300)mm
4 Heating Power 9.6kw
5



Downward Stroke of Ejection Head

≤30mm
6 Stroke of Mold Opening ≤300mm
7  Max. Stroke of Core Remove 150mm
8
Conveyor ( L x W x H)
(2200*450*100)mm
9



Total Power

11kw
10
Rising Angle of Conveyor
2°~4°
11



Speed of Transportation

72mm/s
12
Machine Size ( L x W x H)
(3500*1480*3400)mm
13
Speed of Lift (Single Time)
35s
14
Weight of Lift ( Single Time)
5~10kg
15

Total Weight

2000kg



High Efficiency Sand Core Shooting Machine For Valve / Faucet / Hardware

High Efficiency Sand Core Shooting Machine For Valve / Faucet / Hardware

High Efficiency Sand Core Shooting Machine For Valve / Faucet / Hardware
