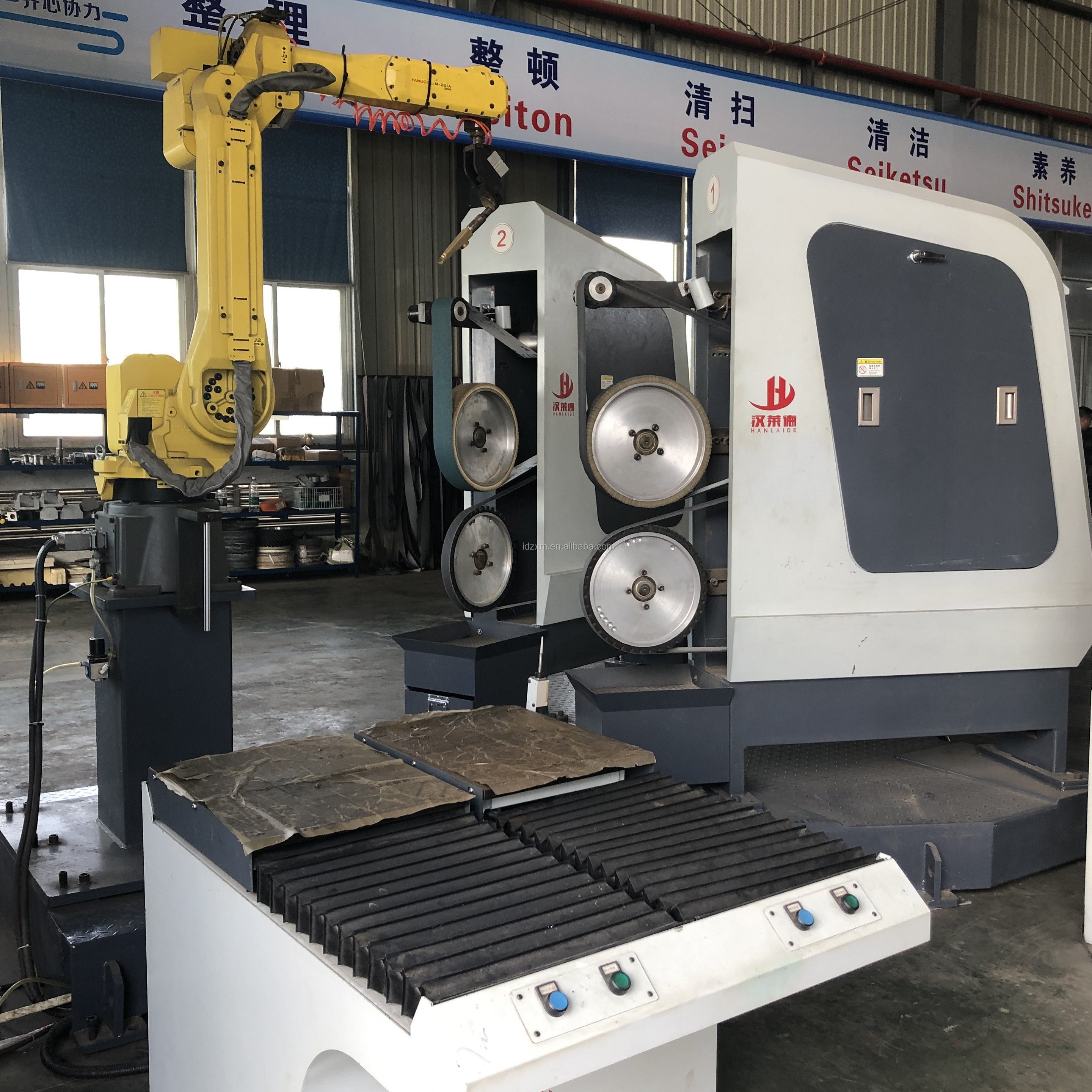

Faucet Sanitary Ware Robotic Buffing Machine Automatic Grinding And Polishing
Robot operation faucet sanitary ware ,auto parts metal ,lockset and doorknob,thread processing grinding and polishing
I: APPLICAITONS
Robot operation faucet sanitary ware ,auto parts metal ,lockset and doorknob,thread processing grinding and polishing machine.
1.1 Built-in professional polishing program module
1.2 Programming mode: the program of the demonstrator is programmed. Manual mode is adopted to simulate manual polishing and record track, which can be automatically run according to this path.
1.3 Full digital control, the program can be saved and invoked at any time.

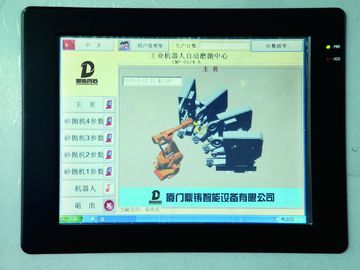

1.4 The functions and parameters are set by the Chinese display touch control panel, which is easy to operate and has the function of fault code display for troubleshooting and maintenance.
II: TECHNICAL PARAMETERS
|
Robot Cell |
FUNAC |
|
Robot Model |
20iA/20 |
|
Rated Voltage |
380V |
|
Machine Power |
10.5KW |
|
Sand Belt Machine Quantity |
2 |
|
Sand Belt Quantity |
4 |
|

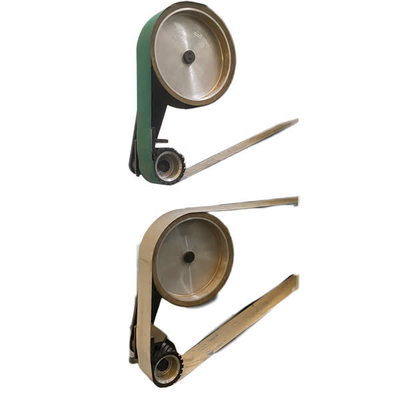

Sand Belt Dimensions |
3000mm×4 |
|

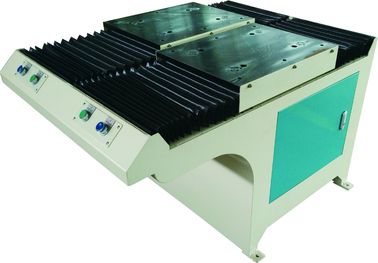

Feed Table |
1 |
Introduction products
Click the link to view video:
https://www.youtube.com/watch?v=kv3QiZceUxI&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=7
|
|
