| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1unit |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

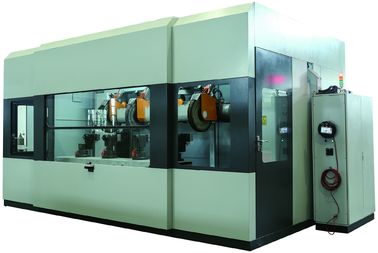

Copper Surface Faucet Robotic Polishing Machine Carbon Steel Material With CNC System
Features:
1.The main electrical control system adopts 6-axes DZ servo CNC system control (main control screen capture positioning, coordinate digital setting, speed digital setting, software over travel protection, program function modularization, simple idiot style programming, etc.)
In mechanical structure, servo motor is used to drive the worm reducer gear to control the motion of the polishing unit head and workpiece (U, V, W axial direction) and the servo motor drives the slide table (X, Y, Z axial).
The machine has 4 polishing unit heads, which can polish 4 work pieces in one cycle time; Production output up to 4PCS / 30 ~ 50 seconds (depending on the product and process);
It is suitable for complex shape handle products, pipe products and other regular shape products.
2. Total power is 16.25KW, including: 2 polishing unit heads with 5.5KW power motor each, XYZVW axis compensation motor 0.75KW, U axis compensation motor 1.5KW.
TECHNICAL PARAMETERS
| Code | Item | Specifications-2station |
Specifications-4station |
| 1 | Dimensions (L*W*H) | 3000*3100*2900mm | 4400*3400*2900 |
| 2 | Machine Power | 16.5KW | 35KW |
| 3 | Rated Voltage | 380V | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
400mm |
| 6 | X-Axis travel (mm) | 1200 | 1200 |
| 7 | Y-Axis travel (mm) | 1100 | 1100 |
| 8 | Z-Axis travel (mm) | 700 | 700 |
| 9 | U-Axis travel (mm) | ±90° | ±90° |
| 10 | V-Axis travel (mm) | ±360° | ±360° |
| 11 | W-Axis travel (mm) | ±360° | ±360° |
Click the link to view video:
https://www.youtube.com/watch?v=2aHETEO5BG8&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=20
|
|
