| Brand Name: | DZ |
| Model Number: | HZ360 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
automatic core shooting machine with the functions of vertical parting , It is suitable for small and medium-sized work
Machine Application and Scope of Application

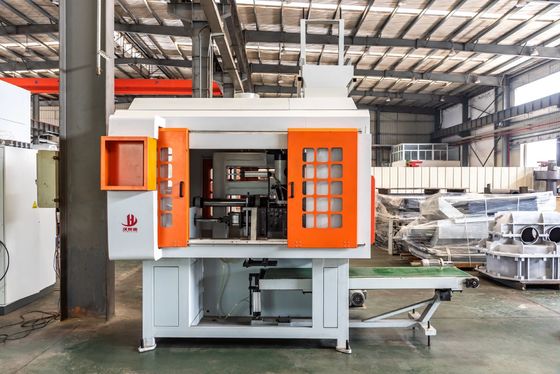

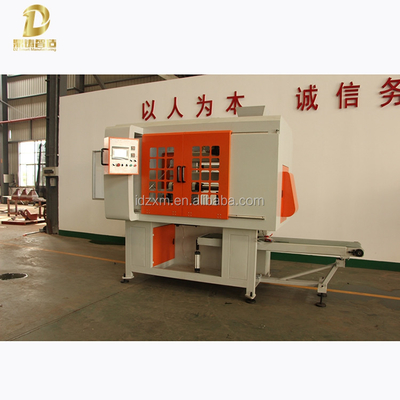

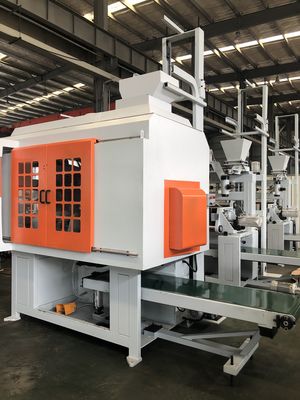

HZ 360-HS core shooting machine is a kind of automatic core shooting machine with the functions of vertical parting, full automatic, down-turning die, conveyor belt to convey sand core and automatic mixed sand lifting. It is suitable for small and medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic industries. It also applied to the hot core sand and coated sand of furan resin series hot box sand and urea-formaldehyde resin series. It is especially suitable for copper and aluminum casting industry, which can meet the core-making requirements of the core-shooting process with three-component resin, complex core shape and low structural strength.
Technical parameters
| 1 | BASIC EQUIPMENT | Specifications |
| Max. Sand Core Weight | 9kg | |
| Max. Cor Box size(L*W*H) | (450*330*220)mm | |
| Heating Plate(L*W) | (400*300)mm | |
| Heating Power | 9.6kw | |
| Clamping stroke of the shooting head | ≤30mm | |
| Die-opening Stroke | ≤300mm | |
| Max.Core Pulling Stroke | 150mm | |
| Conveyor Belt(L*W*H) | (2200*450*100)mm | |
| Machine Power | 2°~4° | |
| Conveyor Speed | 72mm/s | |
| Machine Dimension(L*W*H) | (3500*1480*3400)mm | |
| Lifting Speed(single cycle) | 35s | |
| Lifting Capacity(Single cycle) | 5~10kg | |
| Machine weight | 2000kg |
|
|
