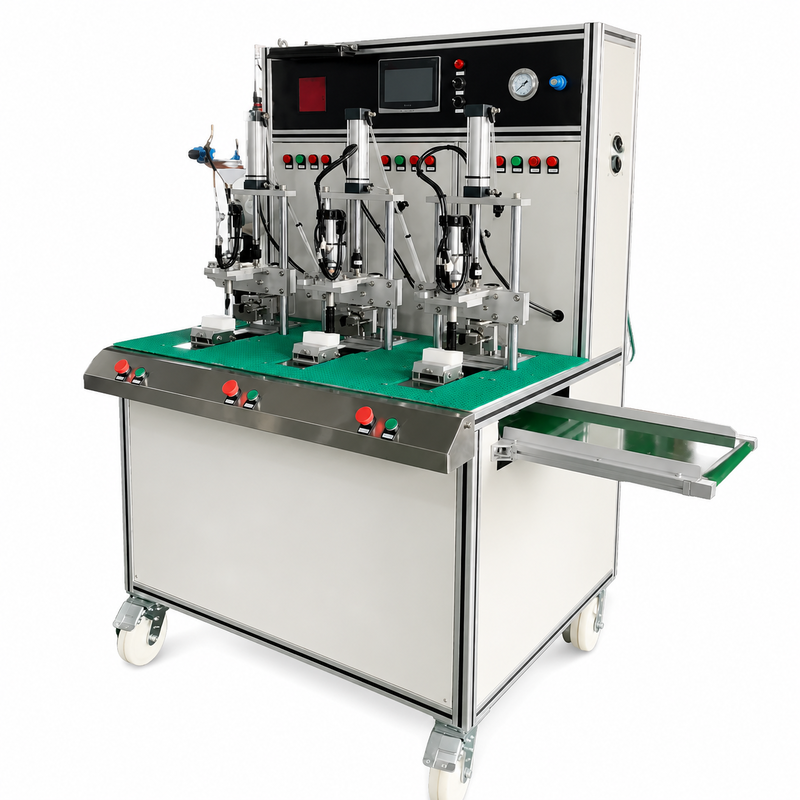

Small Faucet & Angle Valve Automatic Assembly Machine
| Brand Name: | DZ |
| Model Number: | XYT-DK540-4 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
CHINA
Certification:
CE
Whole Machine Weight(about):
160
Voltage:
220V,380V
Dimension(l*w*h):
2300 X 990 X 1700 Mm
Function:
Leak Test Faucet Assembly + Angle Valve Assembly + Dry
Control System:
PLC
Warranty:
1 Year
Type:
Automatic/Semi-Automatic
Delivery Time:
20 work days
Supply Ability:
3 sets per month
Highlight:
Angle Valve Automatic Assembly Machine
,Small Faucet Automatic Assembly Machine
Product Description
Integrated assembly machine for faucet and angle valve cartridges, featuring dry leak testing, laser marking, and automatic defective product sorting. Equipped with a sliding robotic manipulator to transfer qualified products onto the conveyor line for subsequent processing.
| Item | Parameter |
|---|---|
| Model | XGZ-3 |
| Dimensions | 2300 x 990 x 1700 mm |
| Frame Material | Aluminum Profile + Powder-Coated Panels |
| Power Supply | AC220V, Single Phase, Grounded |
| Air Supply | Pneumatic |
| Air Pressure | External Air Source ≥ 0.6 MPa |
| Power Consumption | ≤ 2.0 kW |
| Workstations | 1 Station |
| Test Functions | Manifold Interface Assembly |
| Assembly Method | Horizontal Pressing + Vertical Pressing |
| Main Materials | Aluminum, POM, Copper & Stainless Steel |
| Control System | PLC + 7" Touch Screen |
| Operation Mode | Manual Loading, Pre-locking, Manual Operation + Automatic Testing Cycle |
| Accessories | Standard Fixtures, Tooling & Maintenance Tools |
| Net Weight | 160 kg |
