Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Model Number: | XYT-DK540-4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3 sets per month |
|
Detail Information |
|||
| Product Name: | CNC Engraving And Milling Machine | T Groove(number*slot*width): | 3-18*125mm |
|---|---|---|---|
| Whole Machine Weight(about): | 3500kg | Warranty: | 1 Year |
| Function: | Removing Burrs, Oxidized Skin And Other Surface Defects From The Surface Of Castings | Workbench Size: | 1050*420mm |
| Three Axis Stroke: | 500*400*400mm | Type: | Automatic |
| High Light: | Automatic CNC Engraving Milling Machine,Die Casting Engraving Milling Machine |
||
Product Description

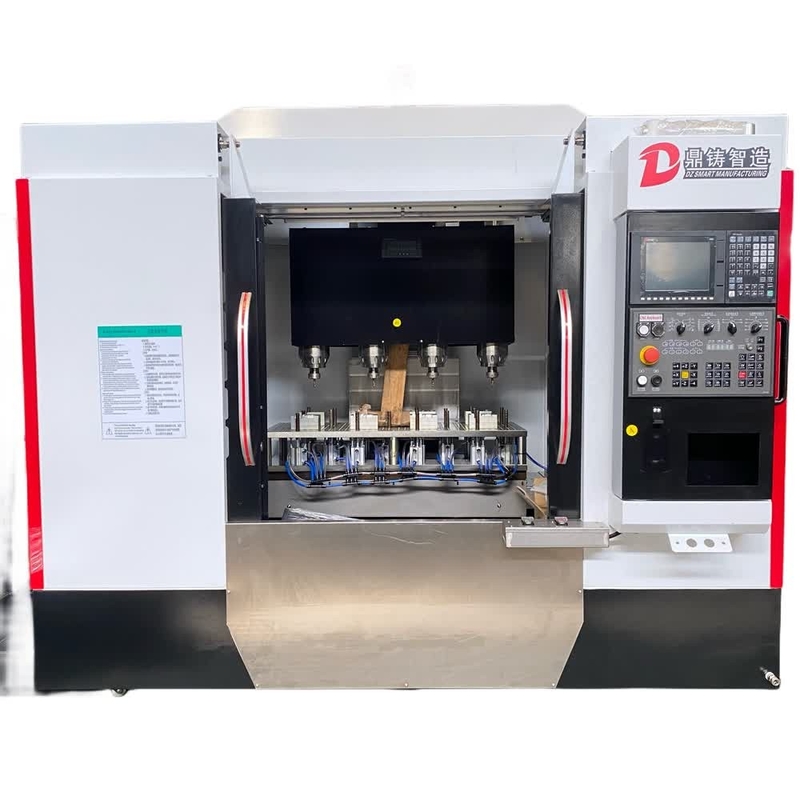

The Peeling Machine (New) is a heavy-duty machine designed to remove burrs, oxidized skin and other surface defects from the surface of castings.
- The three-axis adopts high-precision ball guide rail, which can quickly shift 48m, greatly improving the speed and saving time.

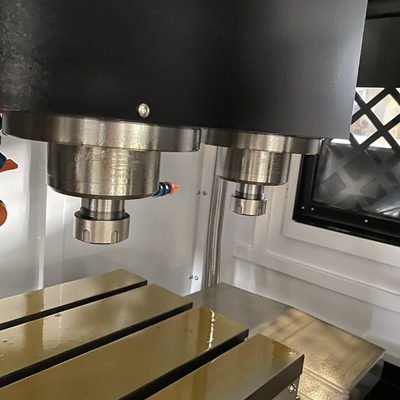

-Elongated table design, can be installed at the same time multi-workpiece position, spindle using multi-head high-power electric spindle, can simultaneously multi-workpiece processing, improve efficiency.
-The headstock adopts nitrogen counterweight balancing mechanism to ensure the high speed and stability of the headstock.
-The best bed mechanism design, the rear outlet water tank position, easy to use, the whole machine beautiful.
| Product Name | Technical Parameters |
| Peeling Machine (New) | Whole machine weight(about): 3500kg |
| Workbench size | 1050*420mm |
| T-groove(number*slot*width) | 3-18*125mm |
| Maximum load(acerage distribution of workbench) | 350kg |
| Three axis stroke | 500*400*400mm |
| Spindle nose to table surface | 150-500mm |
| Distance between the center of the spindle taper(model/installation size) | 450mm |
| Spindle taper(model/installation size) | electric spindleER20/25/35 chuck form |
| Spindle speed |
standard configuration:18000rpm optional configuration:24000rpm |
| Tool Number | No tool magazine:4/electric spindle |
| Maximum tool diameter available | 2/4/6/8/10/12/13mm |
| Three axis fast feed speed | 48/48/48m |
| Feed rate | 0-10000mm |
| Precision | ±0.005/300mm |
| Repetition is defined as precision | ±0.005/300mm |
| Spindle drive motor | 4*4.0kw/4.5.5kw |
| Land area(long*width*high) | 2300*2400*2400mm |
| Whole machine weight(about) | 3500kg |
Focus on bathroom, hardware products industry die casting, casting surface peeling processing
The Peeling Machine (New) is packaged securely in a cardboard box. The box is large enough to fit the machine and all of its accompanying parts. Inside the box, all of the components are carefully placed in separate compartments. A detailed instruction manual is included for easy assembly. All of the parts are securely fastened with bubble wrap or foam to prevent damage during shipping.
The Peeling Machine (New) is shipped via a reliable courier service. Tracking information will be provided to the customer upon shipment. The estimated delivery time is within 3-5 business days from the date of order.
A1: The brand of the Peeling Machine (New) is DZ.
A2: The model number of the Peeling Machine (New) is XYT-DK540-4.
A3: The Peeling Machine (New) is made in China.
A4: The Peeling Machine (New) is designed to quickly and easily peel fruits and vegetables.
A5: The Peeling Machine (New) features a powerful motor, adjustable speed, and a stainless steel blade for precision peeling.
