Robotic Buffing Polishing Coarse And Fine Polish Machines For Shower Faucet
| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China(Mainland)
Certification:
CE ISO
Condition:
New
Warranty:
1 Year
Application:
Auto Spare Parts
Name:
CNC Polishing Machine
Power:
35KW
Voltage:
380V
Delivery Time:
2 weeks
Supply Ability:
30 units/per month
Highlight:
Shower Faucet Robotics Polishing Machine
,Robotic Buffing Machines For Shower Faucet
,Shower Faucet Automatic Polishing Machine
Product Description

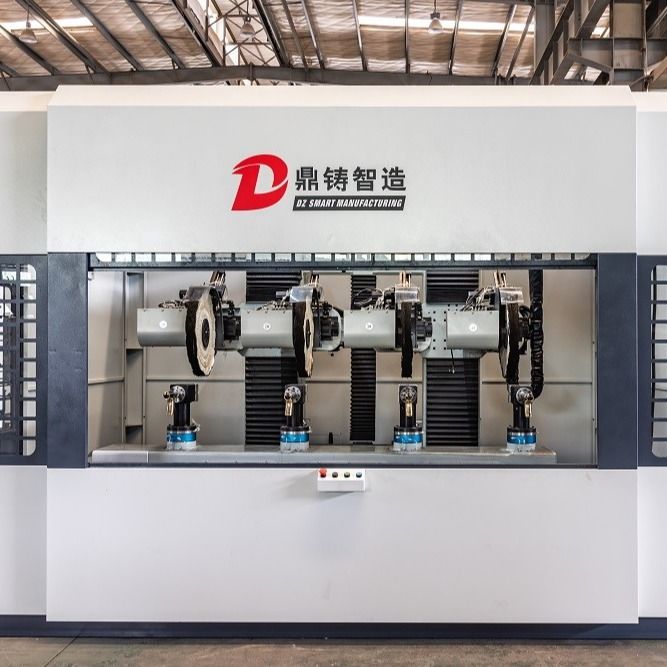

Robotic Buffing Polishing Coarse And Fine Polish Machines For Shower Faucet
Manipulator Robotics Automatic Polishing Machine for Stainless Steel
Applications
- Faucets
- Auto spare parts
- Locks and door handles
- All kinds of metals and jewelry accessories
- Size range of polishing products: Φ 280*280
Product Features
- The automatic polishing machine is an exclusive polishing system consisting of 4 manipulators with 6-axis rotary capability; multiple stations simultaneous operation provides high flexibility and productivity
- The control system adopts PROMAX motion control technology from Italy, ensuring stable performance and high control accuracy
- Software: Programmable with portable handheld device, contains manual mode to simulate workmanship polishing and record tracks; automatic operating mode available with pre-set parameter programs
- Polishing pressure and wear compensation control: When polishing cloth wheel wears out, system detects torque reduction and automatically compensates in all directions
- Linear speed compensation: When outer diameter of cloth wheel reduces, system automatically increases speed for compensation
- Program setting for polishing wax application: Free setting of wax spraying time and frequency according to product characteristics; choice of solid wax or liquid wax
- Full digital control with capacity to store 50 programs; programs can be saved and invoked at any time
- CN/EN language display on Touch Panel for easy parameter setting; fault codes display and alarm pages for quick troubleshooting and repair
Technical Parameters
| No. | Item | Parameters |
|---|---|---|
| 1 | Dimensions (L*W*H) | 5000*3400*3000(L*W*H) |
| 2 | Machine Power | 35KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1200 |
| 7 | Y-Axis travel (mm) | 1100 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±90° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
Basic Equipment
| No. | Device name | Brand | Remark |
|---|---|---|---|
| 1 | Motion control system | PROMAX Italy | |
| 2 | Servo motor | PROMAX Italy | |
| 3 | Variable frequency compensation system + Control card | AELTA | |
| 4 | Cloth wheel motor spindle | SIEMENS | * |
| 5 | Main low voltage electrical | SCHNEIDER | |
| 6 | Linear guide rail and screw | HIWIN | * |
| 7 | Reduction box | Rossi Italy | |
| 8 | Bearing | NSK | |
| 9 | Steering gear of fixture | TAIWAN |
Warranty & After-Sales Service
Warranty Period: 1 YEAR
Under Warranty Services
- DZ warrants that under normal circumstances, upon receipt of customer's after-sales service requirements (with fault description attached), DZ will respond to equipment failure, diagnosis and troubleshooting within 4 hours by phone, fax or email
- DZ provides after-sales service free of charge within warranty period
- Within warranty period, DZ responds within 4 hours upon receiving notice from user, and personnel come to site for maintenance within 12 hours for problems that cannot be solved by buyer
- Free repair or replacement of faulty parts within 5 working days
- During training period in end-user's site, end-user is responsible for DZ technician's daily accommodation
- All above services and vulnerable parts free replacement included under warranty
Training Service
- DZ provides training service to end-user in different stages: equipment operation, maintenance and upgrades
- Buyer must cooperate with training
- Through training, buyer masters basic principles and debugging methods of equipment, gaining ability to use, maintain, operate and handle faults
- Ability to modify, develop, and improve processes and equipment as required
| No. of trainers | Arranged by buyer |
|---|---|
| Training time limit | < 3 days |
| Place for training | DZ's factory |
| Training content | 1. System design principle 2. Principle of mechanical control 3. Operation procedure 4. Maintenance of equipment 5. Safety knowledge |
