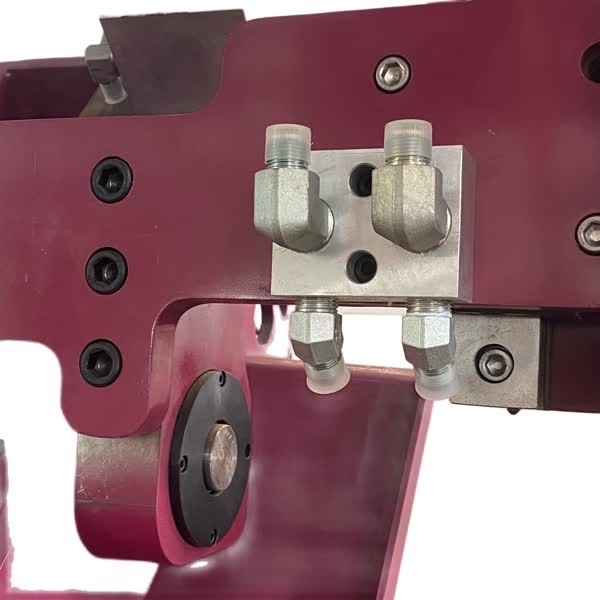

Brass Low Pressure Die Casting Machine For Faucets / Water Meter Or Valve Bodies

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: LPDZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Packaging Details: Wood
Delivery Time: 10 weeks after contract is confirmed and first payment is received.
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2set/per month

Detail Information

Application: Sanitary Industry Name: Brass Casting Machine
Voltage: 380V/50Hz Condition: New,100%New
After-sales Service Provided: Engineers Available To Service Machinery Overseas,Video Technical Support,Field Maintenance And Repair Service,Field Installation Warranty: 1 Year
High Light:

aluminium pressure die casting machine

,

low pressure die casting process

Product Description



In low pressure casting process molten metal is filled directly from the holding or casting furnace into the die or sand mould from below, with low turbulence and with an absolutely controlled filled casting process.



Low pressure die casting machines for brass for the casting of sanitary fittings, faucets, water meter or valve bodies.



To fulfill the different capacity requirements, a full range of machines with one or two manipulators and one, two or three riser tubes can be supplied. We deliver a freely programmable Siemens control.

  1. ADVANTAGES



1. Cost-efficient production

1.1. Multiple dies

1.2. Reduced melting loss

1.3. Increased yield (less circulating material)

1.4. One-man operation

1.5. Cost savings in subsequent stages of manufacture

1.6. For robot grinding low pressure die casting is a must



2. Humanization of the workstation

2.1. Ergonomic design of the workstation

2.2. Minimizing of smoke, heat, noise and danger of accidents



3. High quality castings and high-precision repeatability

3.1. Automated casting

3.2. Oxide inclusions in the casting are prevented by feeding metal from inside the melt through the riser tube

Brass Low Pressure Die Casting Machine For Faucets / Water Meter Or Valve Bodies 0

Fully automatic machine on a single steel frame with one manipulator mounted on a linear transfer device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 380 castings

2) This machine with its automatic operation of the complete low pressure die casting process is highly suitable for the mass production of casting products with a very short die changing time.

3) Specifications:

A. manipulator on a linear guiding device

B. Manually setting of the cores

C. Max die dimensions: 550 x400 mm

D. Quick die change flanges

E. Simple furnace control electrics

F. Die cooling and coating in a blackwash bath

Brass Low Pressure Die Casting Machine For Faucets / Water Meter Or Valve Bodies 1

Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.



1) Capacity per shift (8 hours): approx. 760 castings

2) Fully automation of the low-pressure die-casting process, short mold change time and flexible application, which is very suitable for mass casting production;

3) Specifications

A. 2 manipulators on a rotary device, operated independently. Operating Parameters can be edited independently. Two manipulators either work at the same time; or one set changes the die, or the other set is under maintenance.

B. Manually setting of the cores

C. Max die dimensions: 600 x400x240 mm

D. Quick die change flanges

E. Simple furnace control electrics

F. Die cooling and coating in a blackwash bath

G. Different die castings are equipped with separated feeders, graphite baths and manipulators.

H. Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.

I. Drive by servo motor, with high precise, stable and efficiency performance.

Brass Low Pressure Die Casting Machine For Faucets / Water Meter Or Valve Bodies 2



Brass Low Pressure Die Casting Machine For Faucets / Water Meter Or Valve Bodies 3
