| Brand Name: | DZ |
| Model Number: | CNC |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

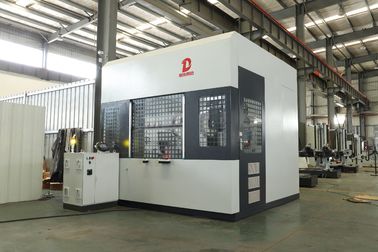

Durable Faucet / Valve Zinc Brass Polishing Machine For Hardware Polishing
Axis CNS Polishing and Buffing Machine Functions
1. The machine equips with 6 NC axes, can finish the polishing and buffing of 4 work pieces in one time.
2. 4 NC axes polishing and buff simultaneously.
3. Handhold programming demonstrator.
4. Able to over programming.
5. Full auto, waxing system.
Features:

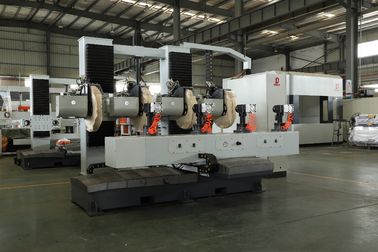

1. Four working stations work simultaneously, and with one time programming, the machine can finish the polishing and buffing jobs of four workpieces in one time
2. The machine has 6 free degree, to achieve all dimensions curved surface working
Fast fixtures changing structure Fully Automatic Waxing System
Finish the polishing/buffing jobs in any angle and position
Main technical parameters:
| # | Item | Parameter | Remarks |
| 1 | Size | 4400*3400*2900(L×W×H) | Machine Cabinet Size |
| 2 | Power | 33KW | |
| 3 | Rated Voltage | 380V 50Hz | |
| 4 | Max. Polishing Mop Diameter | 600mm | |
| 5 | Min. Polishing Mop Diameter | 400mm | |
| 6 | X Axis Travel | 1100 | |
| 7 | Y Axis Travel | 900 | |
| 8 | Z Axis Travel | 700 | |
| 9 | U Axis Travel | ±60° | |
| 10 | V Axis Travel | ±360° | |
| 11 | W Axis Travel | ±360° |
|
|
