China CNC Polishing Machine manufacturer

Aluminum Buffing Machine , Copper Polishing Machine For Bathroom Industry

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE
Model Number: NC-64
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30units/per month

Detail Information

Dimension(L*W*H): 4400x3400x2900 Power: 35KW
Voltage: 380V Max.diameter Of Polishing Wheel: 600mm
Min.diameter Of Polishing: 400mm Application: Bathroom Industry,Hardware Industry,Tool Industry
High Light:

cnc buffing machine

,

aluminium grinding machine

Product Description

Aluminum Buffing Machine , Copper Polishing Machine For Bathroom Industry

Feature:

1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency.

2.The control system adopts PROMAX motion control technology from Italy,stable propeert,high control accracy.

3.Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

4.Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

5.Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

6.Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid wax or liquid wax

7.Full digital control, Can store 50 programs.Programs can be saved and invoked at any time.

8.CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.

9.Automatic feed, memory, storage, dynamic tracking, easy to operate, high degree of automation, greatly improve work efficiency.

10.Operation is relatively simple, the operator only needs to place the object to be polished on the corresponding fixture in advance.Fix the fixture on the working table of the automatic polishing machine.Start the automatic polishing machine, the automatic polishing machine in the set time to complete the polishing work, automatically stop, remove objects from the worktable can be.The distance between the polishing head and the worktable surface should be adjusted before polishing by the automatic polishing machine.To achieve the best contact effect, throw the best effect.Manual waxing can be used in the polishing process to reduce the production cost of the machine.

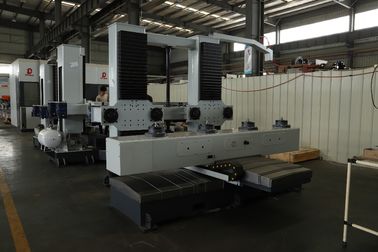

Aluminum Buffing Machine , Copper Polishing Machine For Bathroom Industry 0

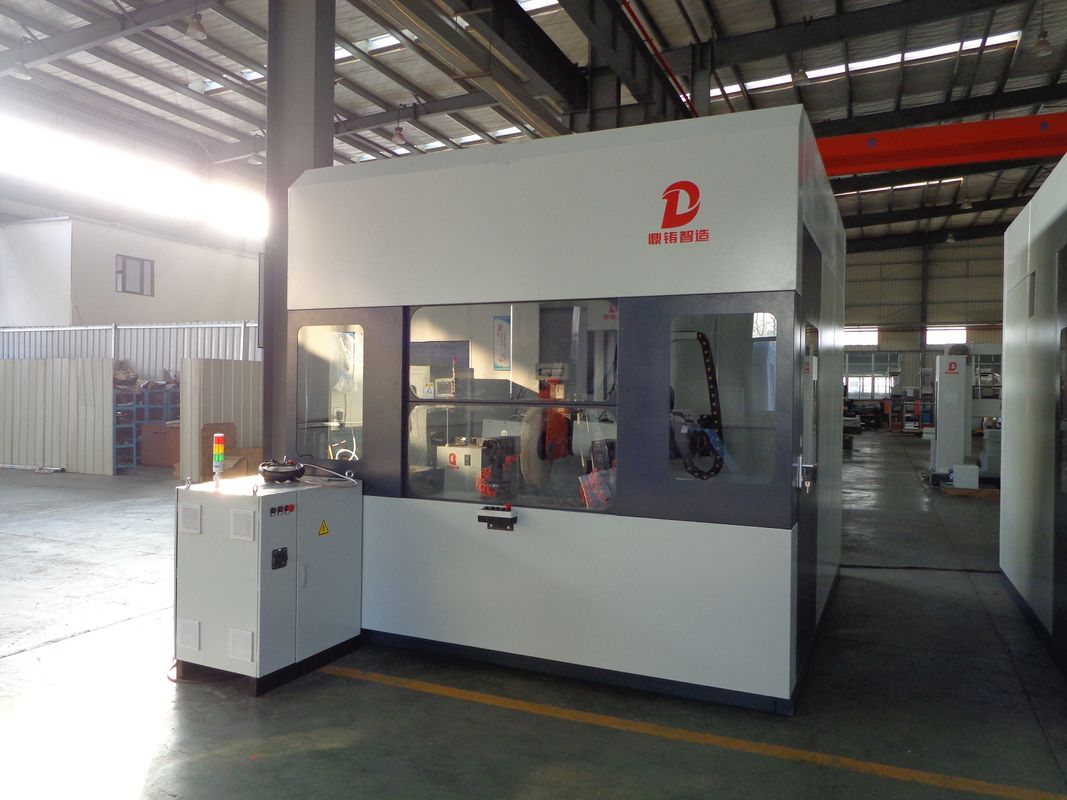

Aluminum Buffing Machine , Copper Polishing Machine For Bathroom Industry 1
