| Brand Name: | DZ |
| Model Number: | NC-64 |
| MOQ: | 1Unit |
| Price: | Negotiable |
| Packaging Details: | wood |
| Payment Terms: | L/C, T/T, Western Union |

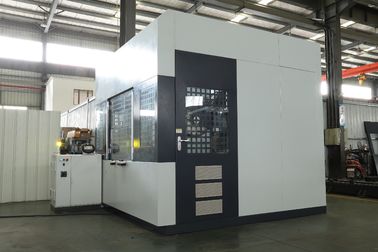

1.1 Device name:Lock automatic polishing machine
1.2 Model:NC-64(6-axes 4 station CNC)
1.3 Voltage:380V 50HZ
1.4 Dimension(L*W*L):4400x3400x2900
1.5 Polishing wheel rotation speed 1800~2000r/min, frequency conversion adjustment
1.6 Effect requirement light, lens light
1.7 Estimated that the fastest time is about 3 ~ 5 seconds to finish the polishing of a product
1.8 It is suitable for polishing all kinds of lock panel products, door lock handle products, door lock handle products and hardware accessories
2.1 Non-stop cycle production
2.2 Can be used for the surface polishing of stainless steel, aluminum alloy, zinc alloy and other metal products
2.3 Polishing wheel Angle can be adjusted according to the product technical requirements (180 ° rotation, up, down, left, right, forward and backward), avoid product R Angle processing does not reach the designated position
2.4 Automatic wax spraying
2.5 Automatic cloth wheel loss compensation
2.6 Automatic fault alarm
2.7 Computer program control
2.8 Can adjust the direction of different products according to their shapes, handle the polishing of special-shaped parts well, and solve the problem that the polishing is not in place
Main technical parameters:
| # | Item | Parameter | Remarks |
| 1 | Size | 4400*3400*2900(L×W×H) | Machine Cabinet Size |
| 2 | Power | 33KW | |
| 3 | Rated Voltage | 380V 50Hz | |
| 4 | Max. Polishing Mop Diameter | 600mm | |
| 5 | Min. Polishing Mop Diameter | 400mm | |
| 6 | X Axis Travel | 1100 | |
| 7 | Y Axis Travel | 900 | |
| 8 | Z Axis Travel | 700 | |
| 9 | U Axis Travel | ±60° | |
| 10 | V Axis Travel | ±360° | |
| 11 | W Axis Travel | ±360° |
|
|
