Brand Name: | DZ |
Model Number: | HZ 360-HS |
MOQ: | 1Set |
Price: | Negotiable |
Packaging Details: | wood |
Payment Terms: | L/C, T/T, Western Union |

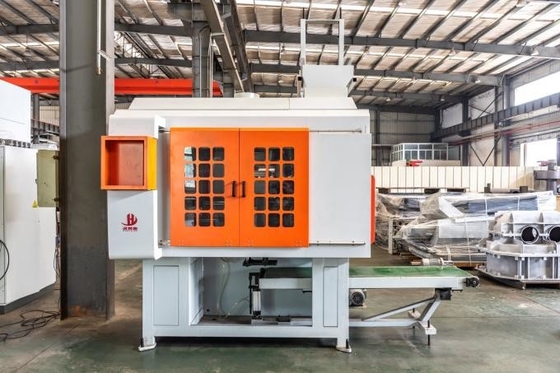

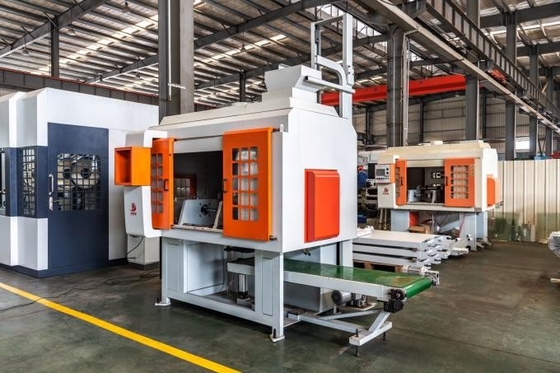

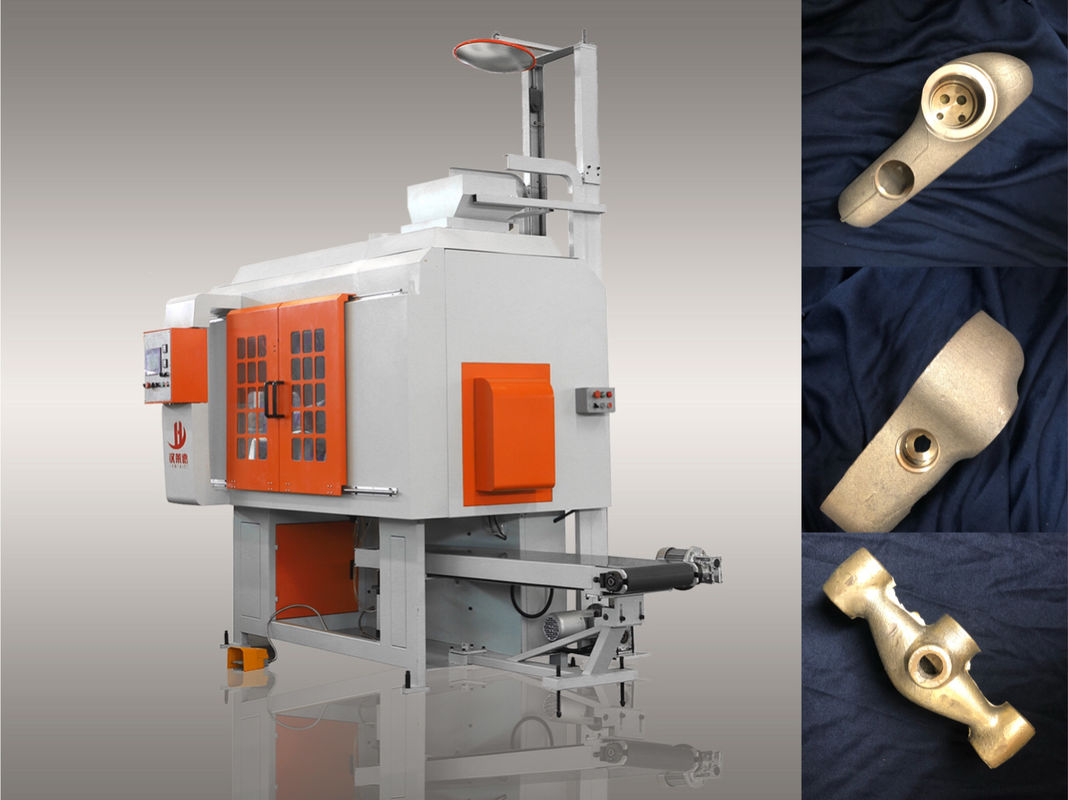

HZ 360-HS core shooting machine is a kind of automatic core shooting machine with the functions of vertical parting, full automatic, down-turning die, conveyor belt to convey sand core and automatic mixed sand lifting. It is suitable for small and medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic industries. It also applied to the hot core sand and coated sand of furan resin series hot box sand and urea-formaldehyde resin series. It is especially suitable for copper and aluminum casting industry, which can meet the core-making requirements of the core-shooting process with three-component resin, complex core shape and low structural strength.
Sand Core Shooting Machines Main Features
1. Horizontal parted type,fetching core manually.
2. Three kinds of function manual,single-circle automatic, automatic circulation.
3. It can shooting sand simultaneously in two sides, big moulding board, electric heating, high efficiency.
4. Die adjustment margin is set to make it easy to use different dies and lower the requirements of die exterior physical dimension.
5. The shooting head rotates for 50° to receive sand, it is easy to clean the shooting hole manually.
6. The sand core shooting machine can be plainly moved as a whole.
Technical Parameters | ||
Code |
Item | Specification |
1 | Max. Weight of Sand Core | 8kg |
2 |
Max. Size of Core Box ( L x W x H) |
(450*330*220)mm |
3 | Heating Plate ( L x W) |
(400*300)mm |
4 | Heating Power | 9.6kw |
5 |
Downward Stroke of Ejection Head |
≤30mm |
6 | Stroke of Mold Opening | ≤300mm |
7 | Max. Stroke of Core Remove | 150mm |
8 | Conveyor ( L x W x H) |
(2200*450*100)mm |
9 |
Total Power |
11kw |
10 | Rising Angle of Conveyor |
2°~4° |
11 |
Speed of Transportation |
72mm/s |
12 | Machine Size ( L x W x H) |
(3500*1480*3400)mm |
13 | Speed of Lift (Single Time) |
35s |
14 | Weight of Lift ( Single Time) |
5~10kg |
15 |
Total Weight |
2000kg |
