Faucet Automatic Polishing Machine High Precision Easy Operate With Servo Motor

Good quality Automatic Polishing Machine for sales
Good quality Automatic Polishing Machine for sales
I'm Online Chat Now

Faucet Automatic Polishing Machine High Precision Easy Operate With Servo Motor

China Faucet Automatic Polishing Machine High Precision Easy Operate With Servo Motor supplier
Faucet Automatic Polishing Machine High Precision Easy Operate With Servo Motor supplier Faucet Automatic Polishing Machine High Precision Easy Operate With Servo Motor supplier

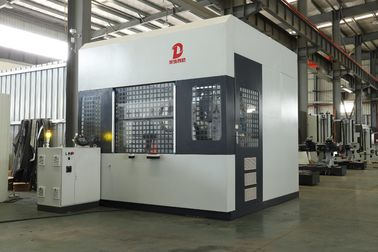

Large Image :  Faucet Automatic Polishing Machine High Precision Easy Operate With Servo Motor

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC-62/64

Payment & Shipping Terms:

Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 3weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30units/per month
Contact Now
Detailed Product Description
Condotion: CNC Buffing Machine Warranty: 1Year
Application: Metal Polishing Voltage: 380V
Power: 4*5.5KW Dimensions: 5300*3400*3000mm

Faucet automatic polishing machine easy to operate



Faucet automatic polishing machine adopts servo motor, PLC programming imported system control;Can automatically adjust coarse grinding, precision grinding times, high precision;The number of one-time processing is large, can be selected according to the number of users need, polishing wheel automatic feed, memory, storage, dynamic tracking.Faucet automatic polishing machine easy to operate, high degree of automation, can remove the polishing dust on the human body and the pollution of the environment, the highest degree of automation in the same type of polishing machine, greatly improve the work efficiency.Reduction of human resources

TECHNICAL PARAMETERS

Code Item Specifications-2station



Specifications-4station

1 Dimensions (L*W*H) 3000*3100*2900mm 4400*3400*2900
2 Machine Power 16.5KW 35KW
3 Rated Voltage 380V 380V
4 Max. Diameter of polishing wheel 600mm



600mm

5 Min. Diameter of polishing wheel 400mm



400mm

6 X-Axis travel (mm) 1200 1200
7 Y-Axis travel (mm) 1100 1100
8 Z-Axis travel (mm) 700 700
9 U-Axis travel (mm) ±90° ±90°
10 V-Axis travel (mm) ±360° ±360°
11 W-Axis travel (mm) ±360° ±360°

Faucet Automatic Polishing Machine High Precision Easy Operate With Servo Motor



Click the link to view video:

https://www.youtube.com/watch?v=2aHETEO5BG8&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=20
