|Place of Origin:||China(Mainland)|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 unit|
|Delivery Time:||2 weeks|
|Payment Terms:||L/C, T/T, Western Union|
|Supply Ability:||30 units/per month|
|Polishing Wheel Size:||400mm-600mm||Name:||Auto Polishing Machine|
auto buffing machine,
automatic metal polishing machine,
Metal Polishing Machine For Faucets

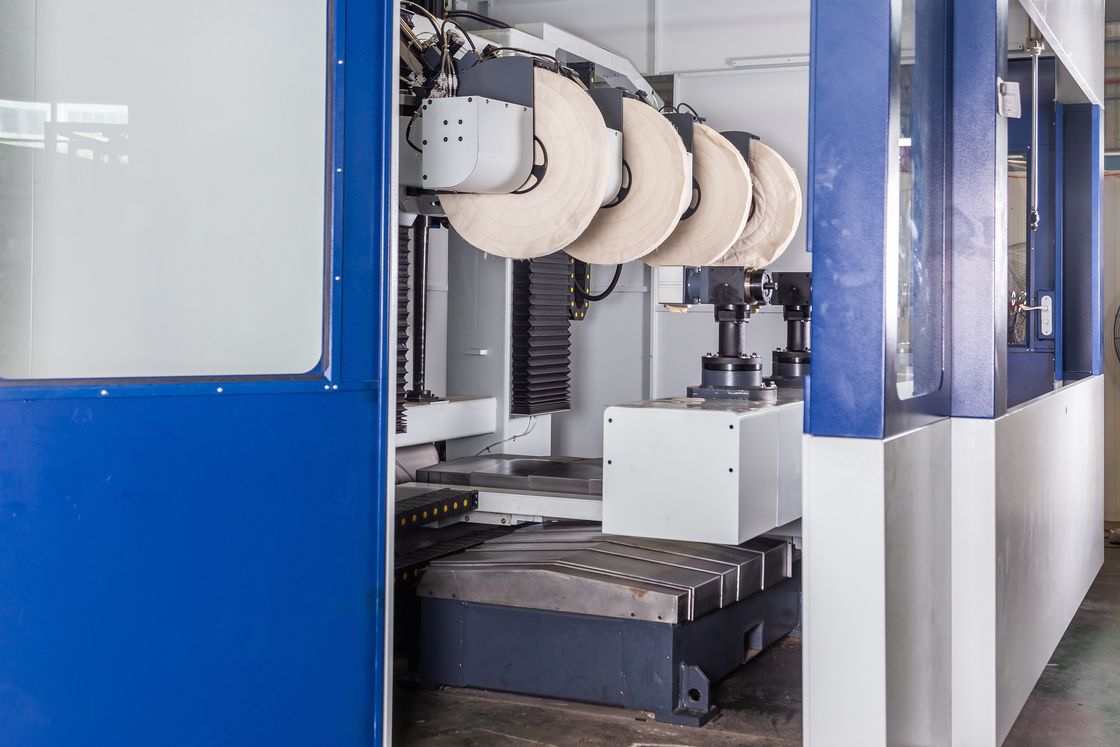

CNC Automatic Metal Polishing Machine 3000*3200*2800 mm Dimensions For Faucets
be mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories.To fulfill the different capacity requirement of customers, we have 2 station and 4 stantion models for customer options.
1.The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency.
2.The control system adopts PROMAX motion control technology from Italy,stable propeert,high control accracy.
3.Programming method:demonstrator programming ,with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.
4.Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction
5.Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;
6.Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid wax or liquid wax
7.Full digital control, Can store 50 programs.Programs can be saved and invoked at any time.
8.CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.
Click the link to view video:
