Automatic System Grinding Machine Robot Grinding Polishing Machine For Faucet
| Brand Name: | DZ |
| Model Number: | FUNAC |
| MOQ: | 1 Unit |
| Price: | Negotiable |
| Packaging Details: | International standard wooden export packing or as your requirement. |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE ISO
Condition:
Automatic Buffing Machine Stainless Steel
Load Ability:
12kg
Quick Details Condition: New Vertical Travel(mm): 90mm Horizonal Travel(mm): 2500mm Place Of Orig:
±0.08mm
Max Loading:
80Kgs
Type:
Robot Manipulator
Warranty:
1Year
Usage:
Processing Sanitary Ware
Delivery Time:
2weeks
Supply Ability:
30 units/per month
Highlight:
robot milling machine
,automatic stainless steel buffing machine
Product Description
Automatic System Grinding Machine Robot Grinding Polishing Machine For Faucet
Advanced robotic grinding and polishing system designed specifically for faucet manufacturing, featuring fully automated operation and precision control.
Main Features

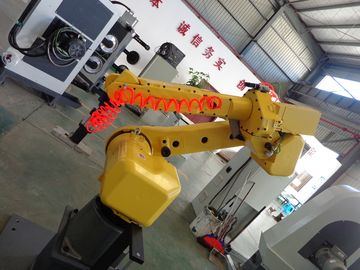

- Robot Body: Fully-automatic control with repeatable programming, capable of performing all types of polishing in three-dimensional space with optional brand selection

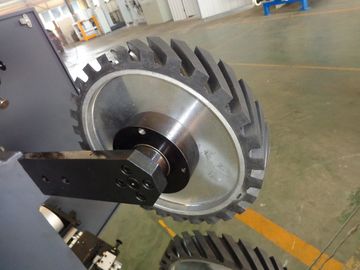

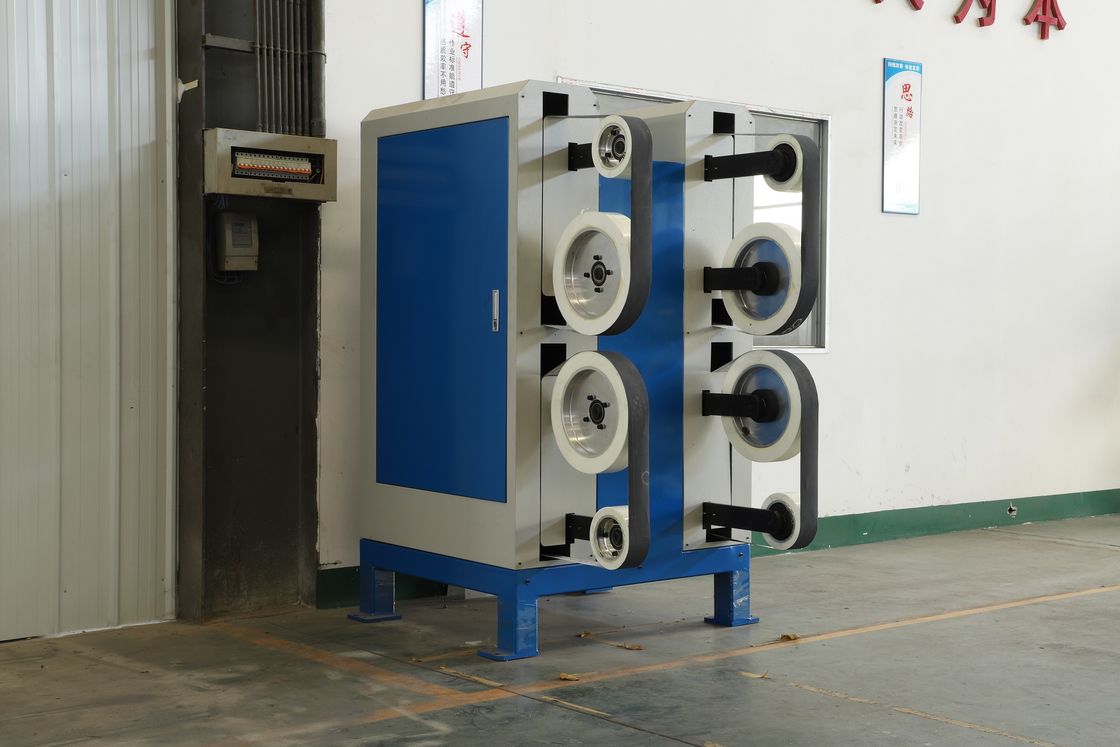

- Abrasive Band Grinding Machine: Equipped with multiple usable grinding contact wheels, automatic speed control, abrasive band tension adjustment, and automatic contact wheel selection (quantity customizable based on user requirements)
- Two-Station Automatic Feeding Table: Double-station element arrangement with alternate operation, capable of handling same or different products simultaneously with automatic program recognition
- Positioner: Pneumatic drive system with air pressure and cable rotation functions, featuring pioneering displacement detection to prevent operation with incorrect placement and protect machine components
- Whole Machine Control System: Comprehensive automation including automatic linear speed compensation, abrasive band rectification, grinding pressure compensation, and remote fault diagnosis and repair
Technical Parameters
Available in four models to accommodate different product weight, size requirements, and customer specifications for belt sanders:
| Specifications | 20GA | 20GB | 35G | 50G |
|---|---|---|---|---|
| Robot Cell | FUNAC | FUNAC | FUNAC | FUNAC |
| Robot Model | 20iA/20 | 20iA/20 | 20iA/35 | 20iA/50 |
| Rated Voltage | 380V | 380V | 380V | 380V |
| Machine Power | 7.6KW | 10.5KW | 11KW | 16KW |
| Sand Belt Machine Quantity | 1 | 2 | 2 | 2 |
| Sand Belt Quantity | 4 | 4 | 4 | 4 |
| Sand Belt Dimensions | 3000mm×4 | 3000mm×4 | 4000mm×4 | 4000mm×4 |
| Feed Table | 1 | 1 | 1 | 1 |
