Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles

Good quality Automatic Polishing Machine for sales
Good quality Automatic Polishing Machine for sales
I'm Online Chat Now

Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles

China Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles supplier
Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles supplier Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles supplier Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles supplier

Large Image :  Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE
Model Number: NC-64

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 30work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100unit/per month
Contact Now
Detailed Product Description
Warranty: 1year Color: Gray
After-sales Service: Engnieer Avila Available Machinery Oversea Condition: New
Name: CNC Buffing Machine Application: Metal

 High Flexibility CNC Polishing Machine With Multiple Stations Simultaneous Operation



Feature:

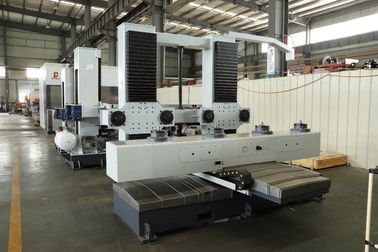

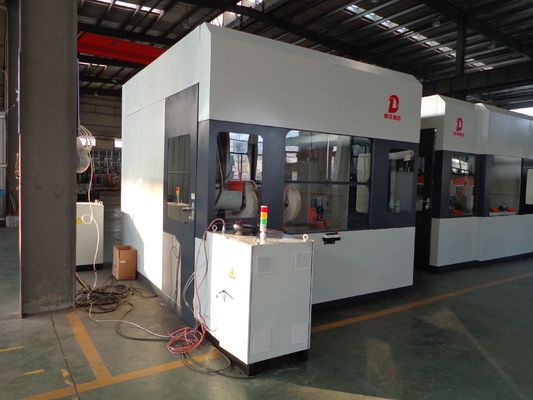

1. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency. Widely used in sanitary ware, door control, auto parts field products polishing
2. With Italy advanced control system for high precision of control and high stability of move technology.
3. Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

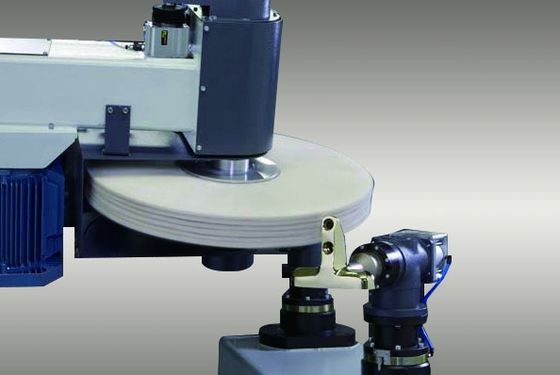

4. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction
5. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;
6. Solid polishing wax, to set up the wax spraying cycle time, frequency.
Select fixed wax and liquid wax according to product features
7. Full digital control, Can store 50 programs polishing program parameters can be saved and adjusted at any time.
8. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.

be mainly for brass alloy and zinc alloy metal products, especially on faucets, valve bodies and sanitary fittings and accessories.To fulfill the different capacity requirement of customers, we have 2 station and 4 stantion models for customer options.
TECHNICAL PARAMETERS


Code

Item

Specifications-2station


Specifications-4station

1

Dimensions (L*W*H)

3000*3100*2900mm

4400*3400*2900

2

Machine Power

16.5KW

35KW

3

Rated Voltage

380V

380V

4

Max. Diameter of polishing wheel

600mm


600mm

5

Min. Diameter of polishing wheel

400mm


400mm

6

X-Axis travel (mm)

1200

1200

7

Y-Axis travel (mm)

1100

1100

8

Z-Axis travel (mm)

700

700

9

U-Axis travel (mm)

±90°

±90°

10

V-Axis travel (mm)

±360°

±360°

11

W-Axis travel (mm)

±360°

±360°


Introduction products

Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles
Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles
Gray Color CNC Polishing Machine Full Digital Control For Locks / Door Handles
