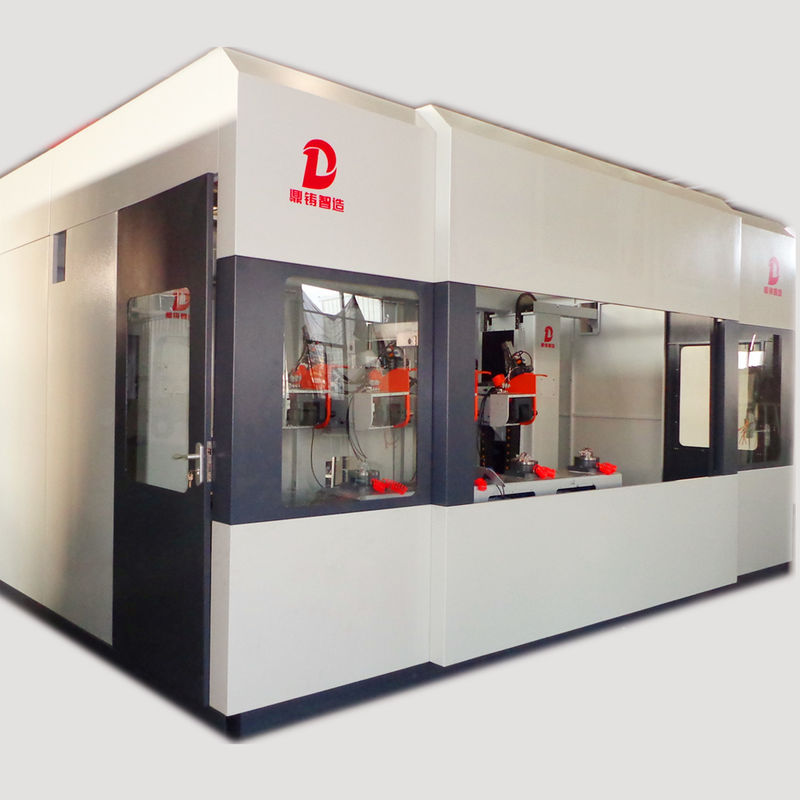

High Efficiency Automatic Metal Polishing Mahicne Easy Operation Buffing Equipment
| Brand Name: | DZ |
| Model Number: | NC-62/64 |
| MOQ: | 1 set |
| Price: | Negotiable |
| Packaging Details: | Covered by wrapping film or wooden carton, fixed in container by bandage. |
| Payment Terms: | L/C,T/T,Western Union |
Detail Information
Place of Origin:
China
Certification:
CE ISO
Voltage:
380V/50Hz (others Are Available)
Condition:
New
Weight:
6000KG
Dimension(l*w*h):
5800x3400x2900
After-sales Service Provided:
Engineers Available To Service Machinery Overseas,Video Technical Support,Field Installation,commissioning And Training
Application:
Polishing
Power(w):
47KW
Advantage:
Fully Automatic
Warranty:
1 Year
Control System:
PLC
Motor:
Servo Motor
Delivery Time:
20 days
Supply Ability:
30sets/per month
Highlight:
auto buffing machine
,automatic metal polishing machine
,380V 50Hz Metal Polishing Mahicne
Product Description
High Efficiency Automatic Metal Polishing Machine
This advanced buffing equipment offers easy operation and high efficiency for various metal polishing applications.
Key Features
- 6-axis four-station polishing robot with six degrees of freedom, enabling four stations to work simultaneously for flexible and efficient operation
- Advanced motion control technology ensures stable performance and precise control
- Teaching programming method uses manual mode to simulate polishing movements and automatically records the track for consistent automated operation
- Automatic polishing wheel compensation detects wear and compensates from all directions
- Linear speed compensation automatically increases rotating speed as cloth wheel diameter decreases
- Fully digital control with programmable memory for repeated use
- User-friendly touch panel for easy function and parameter setting with defect code display for simplified inspection
Technical Specifications
| Item | Parameter | Remarks |
|---|---|---|
| Size (L×W×H) | 3000×3160×2772 mm | |
| Power | 16.25 KW | |
| Rated Voltage | 380V 50Hz | |
| Max. Polishing Mop Diameter | 600 mm | |
| Min. Polishing Mop Diameter | 400 mm | |
| X Axis Travel | 1100 mm | |
| Y Axis Travel | 900 mm | |
| Z Axis Travel | 700 mm | |
| U Axis Travel | ±60° | |
| V Axis Travel | ±360° | |
| Operating Voltage | 380V | |
| Table Size (LxW) | 2740×375 mm | |
| Height from Ground (without fixture) | 880 mm | |
| Jig Rotating Speed | 20 RPM | |
| Station Size/Working Dia (max) | 350 mm | |
| Station Rotational Speed Motor | 1500 rpm |
Standard Equipment & Components
| Item | Brand | Remark |
|---|---|---|
| Motion Control System | PROMAX Italy | |
| Servo Motor | PROMAX Italy | |
| Variable Frequency Compensation System + Control Card | AELTA | |
| Cloth Wheel Motor Spindle | SIEMENS | |
| Main Low Voltage Electrical | SCHNEIDER | |
| Linear Guide Rail and Screw | HIWIN | |
| Reduction Box | Rossi Italy | |
| Bearing | NSK | |
| Steering Gear of Fixture | TAIWAN | |
| Components Clamping | Pneumatic | |
| Table Type | Movable - table moving by screw rod/ball screw, driven by servo motor |
