Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | XYT-DK540-4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3 sets per month |
|
Detail Information |
|||
| Whole Machine Weight(about): | 3500kg | Three Axis Stroke: | 500*400*400mm |
|---|---|---|---|
| Workbench Size: | 1050*420mm | Function: | Removing Burrs, Oxidized Skin And Other Surface Defects From The Surface Of Castings |
| T Groove(number*slot*width): | 3-18*125mm | Warranty: | 1 Year |
| Type: | Automatic | Product Name: | Peeling Machine (New) |
| High Light: | Die Casting CNC Milling Machine,Automated CNC Milling Machine |
||
Product Description

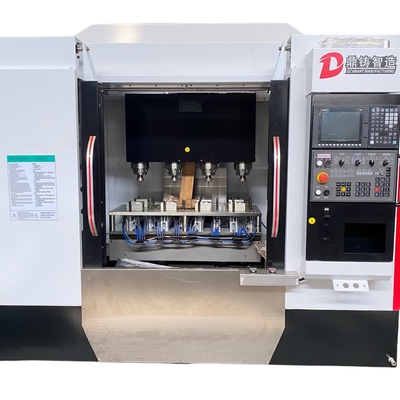

A die casting Peeling Machine is an automated mechanical device specifically designed to remove burrs, bumps, irregular edges and surface defects from die castings.
- The three-axis adopts high-precision ball guide rail, which can quickly shift 48m, greatly improving the speed and saving time.

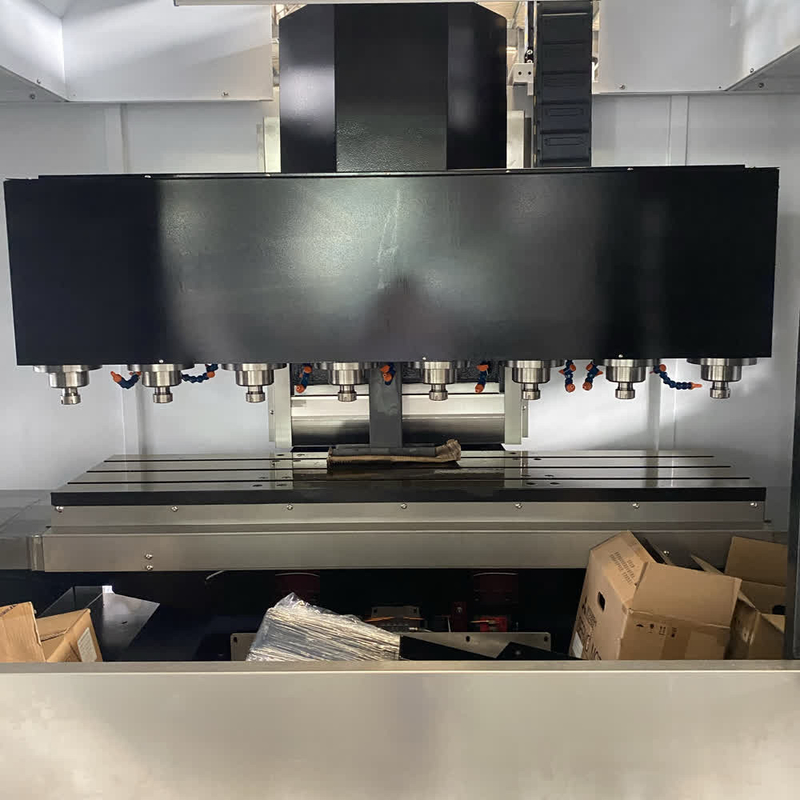

-Elongated table design, can be installed at the same time multi-workpiece position, spindle using multi-head high-power electric spindle, can simultaneously multi-workpiece processing, improve efficiency.
-The headstock adopts nitrogen counterweight balancing mechanism to ensure the high speed and stability of the headstock.
-The best bed mechanism design, the rear outlet water tank position, easy to use, the whole machine beautiful.
| Product Name | Technical Parameters |
| Peeling Machine (New) | Whole machine weight(about): 3500kg |
| Workbench size | 1050*420mm |
| T-groove(number*slot*width) | 3-18*125mm |
| Maximum load(acerage distribution of workbench) | 350kg |
| Three axis stroke | 500*400*400mm |
| Spindle nose to table surface | 150-500mm |
| Distance between the center of the spindle taper(model/installation size) | 450mm |
| Spindle taper(model/installation size) | electric spindleER20/25/35 chuck form |
| Spindle speed |
standard configuration:18000rpm optional configuration:24000rpm |
| Tool Number | No tool magazine:4/electric spindle |
| Maximum tool diameter available | 2/4/6/8/10/12/13mm |
| Three axis fast feed speed | 48/48/48m |
| Feed rate | 0-10000mm |
| Precision | ±0.005/300mm |
| Repetition is defined as precision | ±0.005/300mm |
| Spindle drive motor | 4*4.0kw/4.5.5kw |
| Land area(long*width*high) | 2300*2400*2400mm |
| Whole machine weight(about) | 3500kg |
Focus on bathroom, hardware products industry die casting, casting surface peeling processing
We provide technical support and services for the New Peeling Machine, so you can be sure that you are getting the highest quality product. Our team of experts are available to answer any questions you may have about the product, as well as provide troubleshooting tips and advice if you encounter any issues.
We also provide installation and maintenance services, so you can be sure your peeling machine is running at peak efficiency. Our technicians can also conduct regular inspections to identify any potential problems and make sure the machine is running the way it should.
If you have any questions or need any help with the New Peeling Machine, please feel free to contact us.
