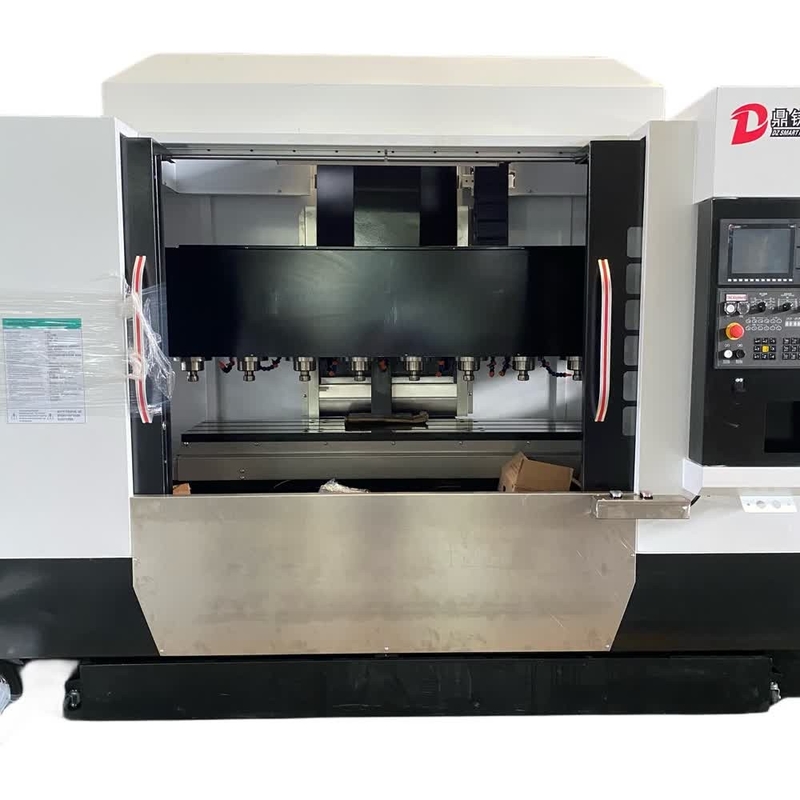

Automatic CNC Engraving And Milling Machine For Bathroom Casting Parts Surface
Automatic CNC Engraving And Milling Machine For Bathroom Casting Parts Surface Automatic CNC Engraving And Milling Machine For Bathroom Casting Parts Surface

Automatic CNC Engraving And Milling Machine For Bathroom Casting Parts Surface

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE
Model Number: XYT-DK540-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 sets per month
Contact Now

Detail Information
T Groove(number*slot*width): 3-18*125mm Function: Removing Burrs, Oxidized Skin And Other Surface Defects From The Surface Of Castings
Three Axis Stroke: 500*400*400mm Warranty: 1 Year
Type: Automatic Product Name: Peeling Machine (New)
Whole Machine Weight(about): 3500kg Workbench Size: 1050*420mm
High Light:

Casting Parts CNC Milling Machine

,

Bathroom Parts CNC Milling Machine

Product Description

Product Description:
Automatic CNC Engraving And Milling Machine For Bathroom Casting Parts Surface 0Automatic CNC Engraving And Milling Machine For Bathroom Casting Parts Surface 1Automatic CNC Engraving And Milling Machine For Bathroom Casting Parts Surface 2
 Technical Parameters:
Product Name Technical Parameters
Peeling Machine (New) Whole machine weight(about): 3500kg
Workbench size 1050*420mm
T-groove(number*slot*width) 3-18*125mm
Maximum load(acerage distribution of workbench) 350kg
Three axis stroke 500*400*400mm
Spindle nose to table surface 150-500mm
Distance between the center of the spindle taper(model/installation size) 450mm

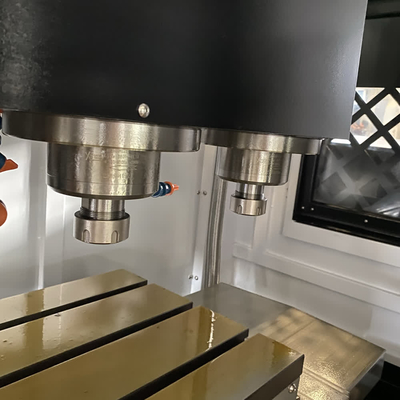

Spindle taper(model/installation size) electric spindleER20/25/35 chuck form
Spindle speed

standard configuration:18000rpm

optional configuration:24000rpm
Tool Number No tool magazine:4/electric spindle
Maximum tool diameter available 2/4/6/8/10/12/13mm
Three axis fast feed speed 48/48/48m
Feed rate 0-10000mm
Precision ±0.005/300mm
Repetition is defined as precision ±0.005/300mm
Spindle drive motor 4*4.0kw/4.5.5kw
Land area(long*width*high) 2300*2400*2400mm
Whole machine weight(about) 3500kg
Applications:

Focus on bathroom, hardware products industry die casting, casting surface peeling processing



Packing and Shipping:



Packaging and Shipping

The new Peeling Machine is packaged securely in a cardboard box with fitted foam inserts to protect it from any damage during shipping.

The product is shipped with standard ground shipping, and customers are able to track their order online. The shipping cost is included in the product price, and delivery typically takes 5-7 business days.



FAQ:
Q: What is the brand name of the Peeling Machine (New)?
A: The brand name is DZ.
Q: What is the model number of the Peeling Machine (New)?
A: The model number is XYT-DK540-4.
Q: Where is the Peeling Machine (New) made?
A: The Peeling Machine (New) is made in China.
Q: What is the size of the Peeling Machine (New)?
A: The size of the Peeling Machine (New) is dependent on the specific model.
Q: What materials can the Peeling Machine (New) work with?
A: The Peeling Machine (New) is suitable for peeling various materials such as fruits, vegetables, potatoes, and more.
