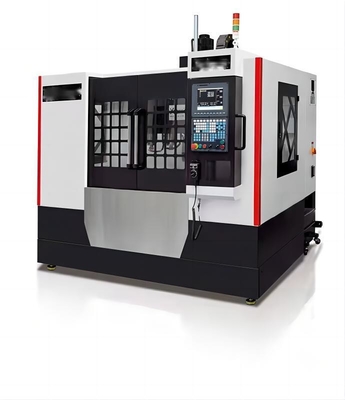

Automatic CNC Engraving And Milling Machine With 500*400*400mm Three Axis Stroke

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE
Model Number: XYT-DK540-4
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 set /per month

Detail Information

Workbench Size: 1050*420mm Warranty: 1 Year
Product Name: CNC Engraving And Milling Machine Three Axis Stroke: 500*400*400mm
Type: Automatic T Groove(number*slot*width): 3-18*125mm
Function: Removing Burrs, Oxidized Skin And Other Surface Defects From The Surface Of Castings Whole Machine Weight(about): 3500kg
High Light:

Automatic CNC Engraving Machine

,

Faucet CNC Engraving Machine

Product Description

Automatic CNC Engraving And Milling Machine For Accessories With T Groove 3-18*125mm 500*400*400mm Three Axis Stroke

Product Description:

Introducing the new Peeling Machine – an automatic engraving and milling machine designed to remove burrs, oxidized skin and other surface defects from the surface of castings.

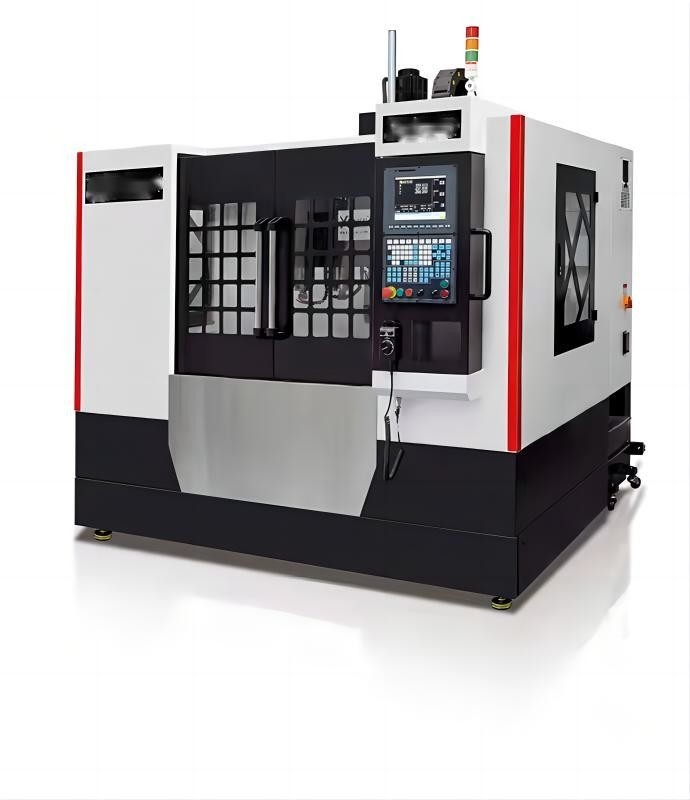

Automatic CNC Engraving And Milling Machine With 500*400*400mm Three Axis Stroke 0

Features:

  • Product Name: CNC Engraving And Milling Machine
  • Whole machine weight(about): 3500kg
  • Workbench size: 1050*420mm
  • Three axis stroke: 500*400*400mm
  • Warranty: 1 Year
  • Type: Automatic


Technical Parameters:

Product Name Technical Parameters
CNC Engraving And Milling Machine Whole machine weight(about): 3500kg
Workbench size 1050*420mm
 T-groove(number*slot*width) 3-18*125mm
Maximum load(acerage distribution of workbench) 350kg
Three axis stroke 500*400*400mm
Spindle nose to table surface 150-500mm
Distance between the center of the spindle taper(model/installation size) 450mm
Spindle taper(model/installation size) electric spindleER20/25/35 chuck form
Spindle speed

standard configuration:18000rpm

optional configuration:24000rpm

Tool Number No tool magazine:4/electric spindle
Maximum tool diameter available 2/4/6/8/10/12/13mm
Three axis fast feed speed 48/48/48m
Feed rate 0-10000mm
Precision ±0.005/300mm
Repetition is defined as precision ±0.005/300mm
Spindle drive motor 4*4.0kw/4.5.5kw
Land area(long*width*high) 2300*2400*2400mm
Whole machine weight(about) 3500kg


Applications:

Suitable for the surface peeling of the bathroom ware (eg. faucet), hardware, casting pieces, car accessory, lock, door knob, jewelry.


Packing and Shipping:

Packaging and Shipping for Peeling Machine (New)

The Peeling Machine (New) is packaged to ensure that it arrives safely and in perfect condition. The machine is enclosed in a sturdy cardboard box with foam cushioning to protect against bumps and shocks. Inside the box, you will find the machine itself, as well as all necessary parts and accessories. All components are individually packaged to ensure that they are not damaged in transit.





FAQ:

Q: What is the brand name of the Peeling Machine (New)?
A: The brand name of the Peeling Machine (New) is DZ.
Q: What is the model number of the Peeling Machine (New)?
A: The model number of the Peeling Machine (New) is XYT-DK540-4.
Q: What is the place of origin of the Peeling Machine (New)?
A: The Peeling Machine (New) is manufactured in China.
Q: What are the features of the Peeling Machine (New)?
A: The Peeling Machine (New) is highly efficient and can peel potatoes, carrots, and other root vegetables quickly and safely. It is easy to use and requires minimal maintenance.
Q: What is the warranty period for the Peeling Machine (New)?
A: Please refer to the product manual for more information about the warranty period for the Peeling Machine (New).
