Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine

August 4, 2021

Latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine

From brass bars into faucets



The production of faucets is partly automated, while most work stages are still carried out by hand. Briefly put, the work stages are core building, casting, sawing, machining, grinding, polishing, chrome-plating, assembly and testing. However, a lot of work has already been done before these: a new product has been designed and its production has been simulated on a computer, after which casting has been tested and adjusted until it is perfected. Makes all the tools, shell moulds and core boxes required during casting.



Casting starts from brass bars and cores



The most important ingredient in faucet production is brass, from which the faucet body is made by means of casting. The core is a central part of the production process, as it forms water channels in the faucet body during casting. A solid core is made from fine sand and a hardening agent by heating in a core box.

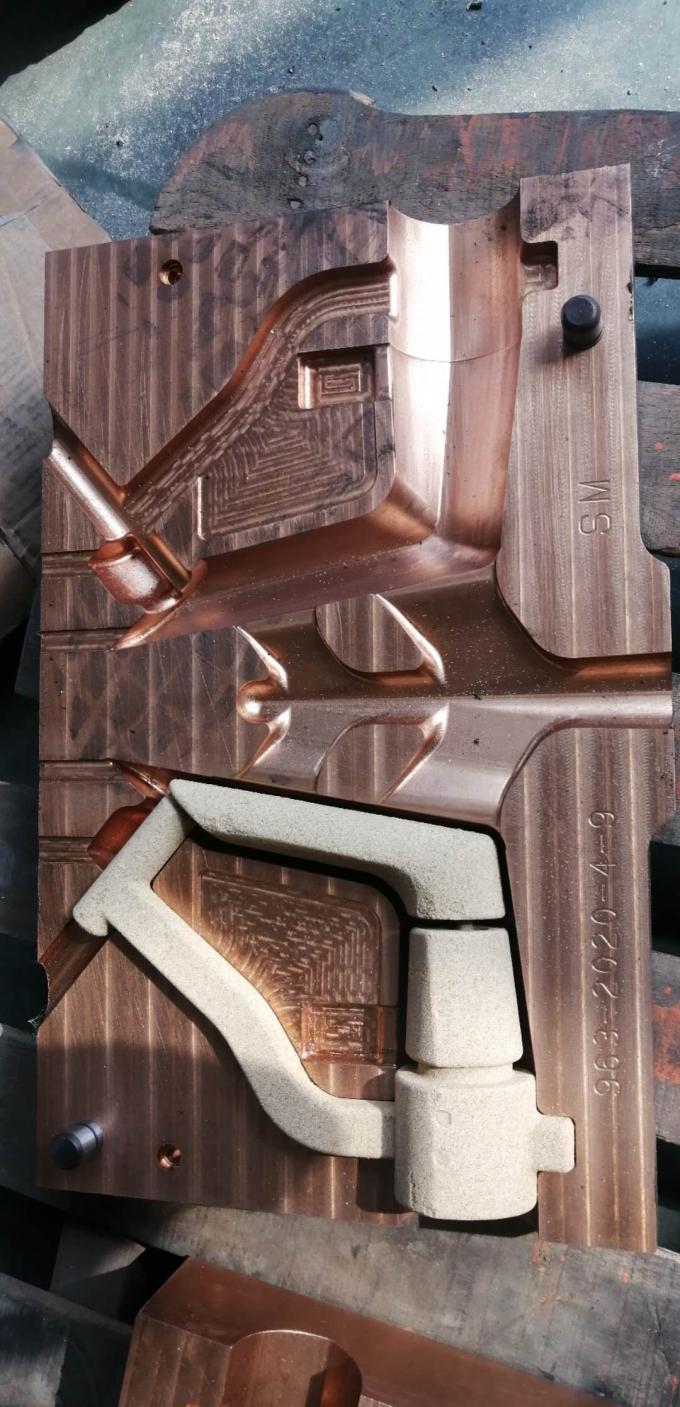

The core is made from fine sand and it forms the waterways for the faucet body during casting

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  0

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  1

During casting, the shell mould is dipped into a water and graphite solution. The caster (the person responsible for casting) places the cores inside the mould and removes any loose sand from the shell mould using compressed air.

The cores are placed inside the mould.



The mould is sealed and placed in the blazing hot casting chamber of the casting furnace. Three tons of molten brass flow from the casting furnace into shell moulds. The core maintains waterways open inside the mould, to which technical components are installed and through which water flows through the faucet.

Molten brass flows into the shell moulds.

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  2

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  3

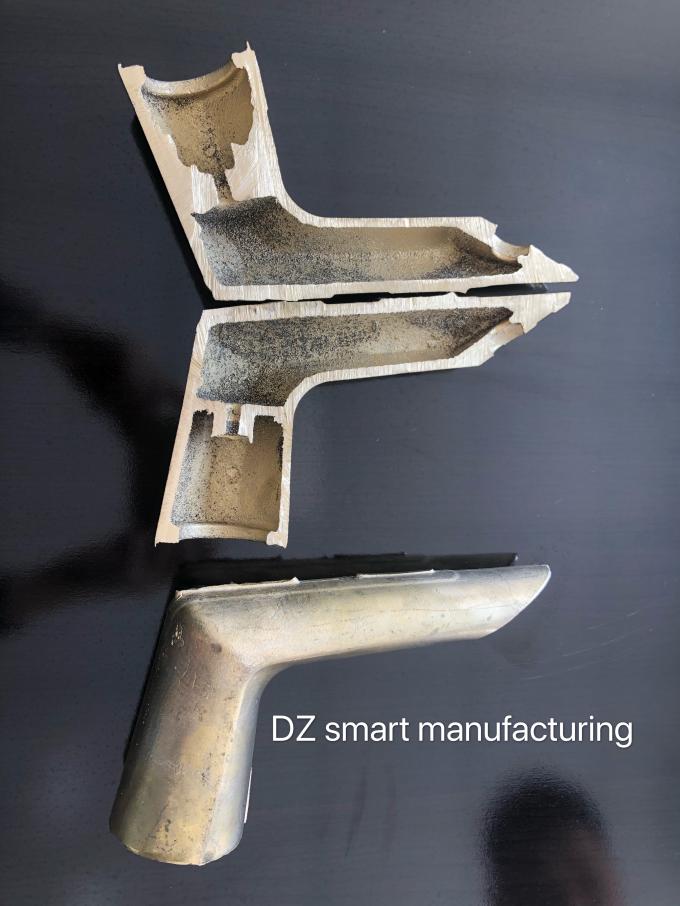

After brief cooling, the caster uses tongs to move the cast to cool down. Next, the core is removed from inside the faucet body by whirling it in a mill equipped with metal balls.



Faucets are sawn and ground to their final shape

Cooled faucet bodies delivered from the foundry are separated from each other by sawing, and any parts that were necessary during casting but not included in complete faucets are removed.

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  4

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  5

Faucets are sawn and ground to their final shape

Cooled faucet bodies delivered from the foundry are separated from each other by sawing, and any parts that were necessary during casting but not included in complete faucets are removed.

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  6

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  7

latest company case about Brass Faucet Produce Process & Craft By Low Pressure Die Casting Machine  8

Chrome plating allows no errors

Finally, faucets are chrome-plated. Chrome makes the surface hard, shiny and wear-resistant.

After polishing, faucet bodies should no longer be touched by bare hands to avoid having finger prints in the chrome-plating.



Technical components are installed inside the faucet body

Makes the components installed inside the faucet body itself. These regulate the water flow and temperature, among other things.
