Product Details:
|
|
Place of Origin: | CHINA |
---|---|
Brand Name: | DZ |
Certification: | CE ISO |
Model Number: | RD-5040-S |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 set |
Price: | Negotiable |
Packaging Details: | wood |
Supply Ability: | 3 sets per month |
Detail Information |
|||
Max. Die Dimension: | 600*400*240mm | Hydraulic Rated Pressure: | 8Mpa |
---|---|---|---|
Melting Rate: | 350KG/H | Furnace Inductors: | 3*35KW |
Gas Flow: | 0.225m³/h | Gas Pressure: | 0.5bar |
Hydraulic Motor Power: | 8.7KW | Cooling System Pressure: | 3-5bar |
High Light: | Brass Faucets Die Casting Machine,Automatic Faucets Die Casting Machine |
Product Description
Parameter | Value |
---|---|
Max. Die Ejector Stroke | 48mm |
Gas Flow | 0.225m³/h |
Total Weight | 13T |
Max. Die Opening Stroke | 370mm |
Air Pressure Compressed Air Consumption | 15m³/H |
Cooling System Pressure | 3-5bar |
Cooling System Flow | ≥400L/Min ≤600L/Min |
Gas Pressure | 0.5bar |
Furnace Inductors | 3*35KW |
Max. Force of Die Closing | 2400kg |

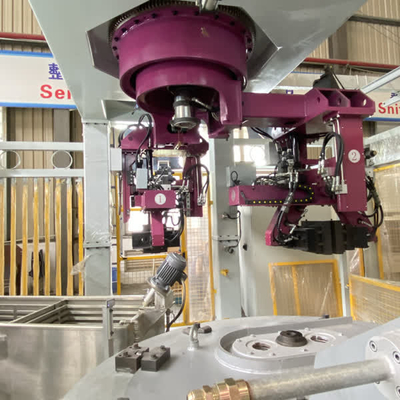

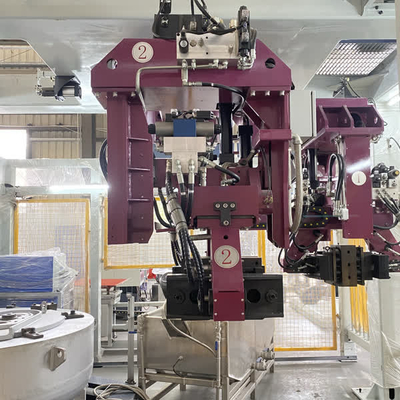

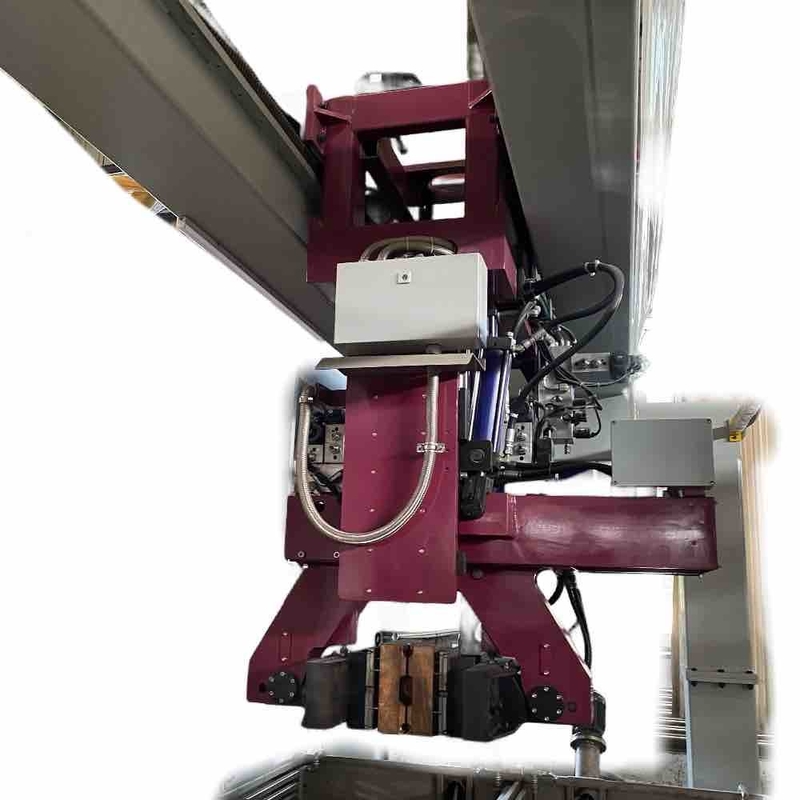

Product Name | Low Pressure Die Casting Machine |
Automatic Casting Machine | Yes |
Low Pressure Die Casting Process | Yes |
Suitable for bathroom accessories, faucets, water meters and valves and other brass casting.
