Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | HZ-450 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Packaging Details: | wood |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Name: | Brass Die Casting Machine | Technology: | Gravity Die Casting Technology |
|---|---|---|---|
| Hydraulic Oil: | 163L | Total Power: | 5.5KW |
| Installing Top Core Device: | 20mm Travel | ||
| High Light: | Gravity Zinc Die Casting Machine,Gravity Aluminium Die Casting Machine,CE Zinc Die Casting Machine |
||
Product Description

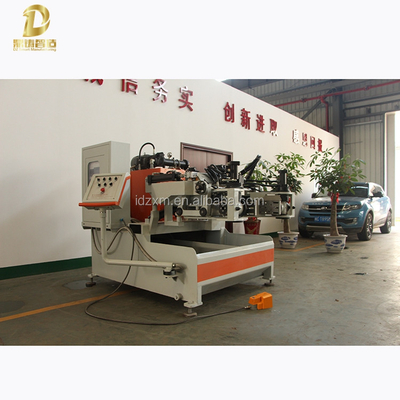

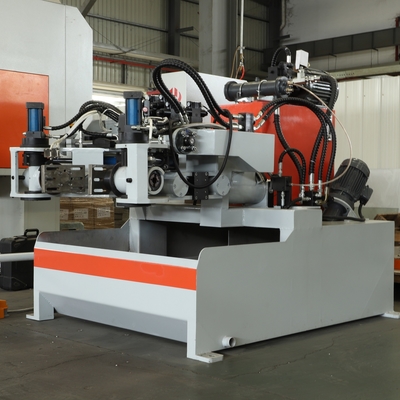

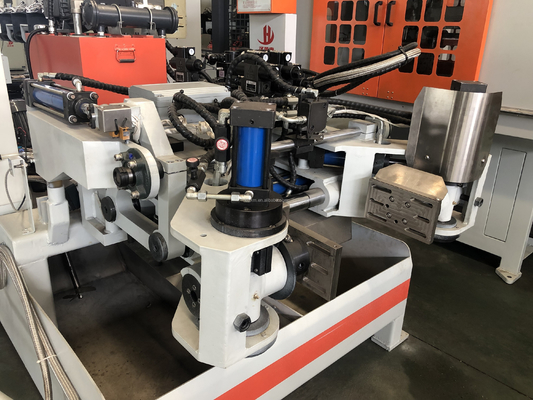

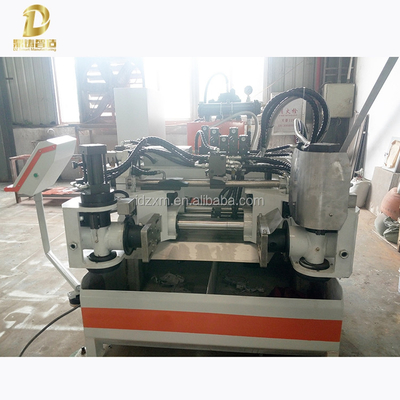

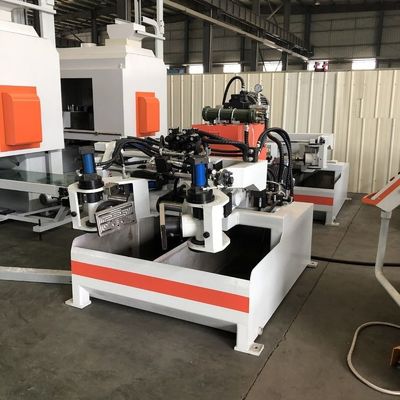

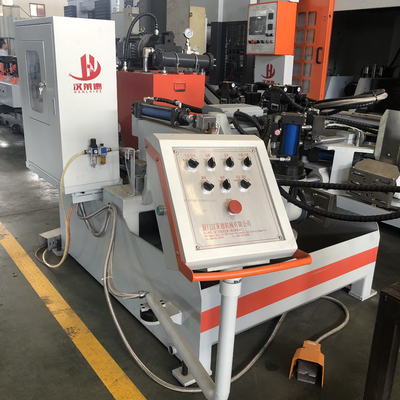

1750KG CE Certification Gravity Metal Zinc Aluminium Die Casting Machine With Low Price
Ⅰ CHARACTERISTIC

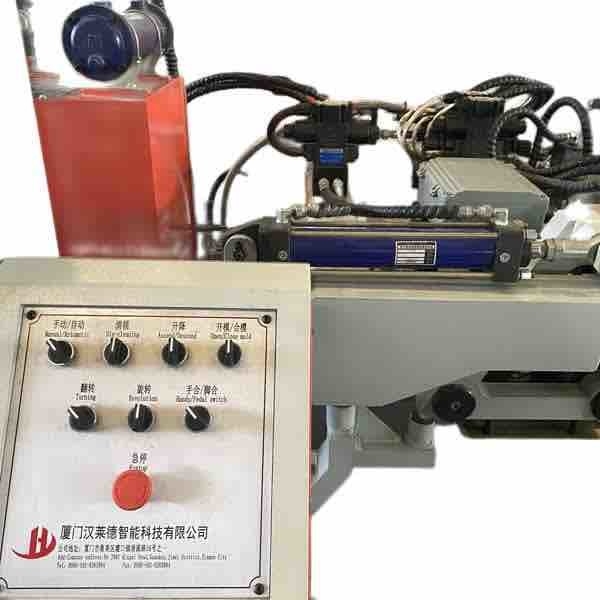

1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.
2) It is suitable for gravity die casting of brass and ferrous alloy.
3) It can be frontal casting, side casting, twice casting and mixed casting.
4) It is possible to individually adjust the cooling time of the die.
5) It facilitates the decomposition, combination and cleaning of dies.
6) It has two functions manual and automatic circulation, the counter can be preset, to record the output of each shift.
7) There is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
8) The machine can store the die casting operation programs and set the password accordingly.
Ⅱ TECHNICAL PARAMETERS
| 1 | MAX MOULD SIZE | 450mm |
| 2 | Max Mould Weight | 130KG |
| 3 | Longest Merger Distance | ≤250mm |
| 4 | Hydraulic Pressure | 40-60KPa |
| 5 | Side Casting Angie | 0º-90º |
| 6 | Frontal Casting Angle | 0º-110º |
| 7 | Hydraulic Oil | 163L |
| 8 | Total Power | 5.5KW |
| 9 | Installing Top Core Device | 20mm travel |
| 10 | Net Weight | 1750KG |
| 11 | Machine Dimension | 2250*2160*1560mm |
Q: Could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge.
Q: Could you arrange the production education?
A: Yes , we could and the buyer pay the charge.
Q: How long the guarantee?
A: One year and charge for repair the whole life.
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
