Automatic Gravity Die Casting Machine For Bathroom Accessories / Hardware Products

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2week
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 Set/Sets per Month casting machine

Detail Information

Condition: New Warranty: 1Year
Type: Brass Bar Casting Machine Feature: Precision Casting
Application: Casting Industries Voltage: 380V
High Light:

automatic die casting machine

,

copper die casting machine

Product Description

Automatic Gravity Die Casting Machine For Bathroom Accessories / Hardware Products

Mechanical structure and working principle

1. Left and right water tank are separated, which make them easy to clean and can blend the water and graphite powder evenly. Considering the strong causticity of graphite,the water tank is welded by stainless steel sheet to prolong its useful time.

2. Support cantilever consists of bottom beam, support rotation axis, axis seat and adjustment of casting angle. Die opening and closing, overturn, rise-fall of left and right model matching racks is completed by the support cantilever

3. Hydraulic tank is installed between the electric cabinet and oil pump. It is the drive of hydraulic pressure part of the whole machine used to reclaim hydraulic oil and cool the heat produced during the motion of hydraulic pipeline.

4. Rise and fall---die opening----die matching----overturn----die dipping in revolution----push out the clean die----rotation and casting will be carried out one by one

5. Electrical control system mainly adopts the original binding electrical components of Japan Mitsubishi Ohm Dragon, including: PLC, touch screen, transformer, current transformator, voltmeter, ammeter, revolving switch, emergency stop switch, AC contactor, heat relay, air switch(380V/220V), photoelectric sensor, control box(manual/automatic), rotation, die opening and closing, model cleaning, overturn, rise and fall, overturn emergency stop. All actions will be carried out with the operation control system.



Feature



- The circuit is controlled by PLC, the data is set by touch screen, and all hydraulic components are imported

- Suitable for gravity casting of brass and ferroalloy

- Multiple casting options are available

- Ability to adjust model cooling time individually

- Easy to disassemble, assemble and clean the mold

- With two functions of manual and automatic circulation, the counter can be preset to record the number of production pieces on duty

- Mold adjustment space is provided to facilitate the application of different molds, reduce the requirements for mold size

- Can store the mold casting operation procedure and set the password

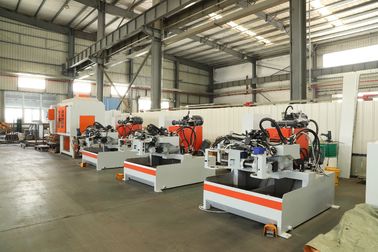

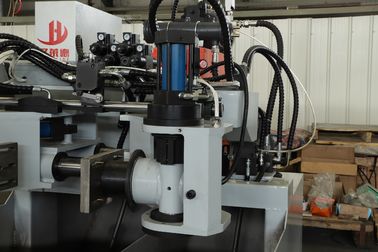

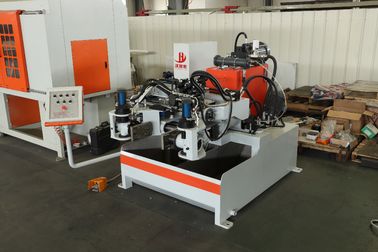

Automatic Gravity Die Casting Machine For Bathroom Accessories / Hardware Products 0
