Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | NC64 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 |
| Packaging Details: | wood |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30sets per month |
|
Detail Information |
|||
| High Light: | CNC Industrial Buffing Machine,Rotary CNC Buffing Machine,Automatic Brass Tube CNC Buffing Machine |
||
|---|---|---|---|
Product Description
| etail Information | |||
| Dimensions (L*W*H): | 4400*3400*2900 | Machine Power: | 35KW |
|---|---|---|---|
| Rated Voltage: | 380V | Max. Diameter Of Polishing Wheel: | 600mm |
| Min. Diameter Of Polishing Wheel: | 400mm | X-Axis Travel (mm): | 1200 |
| Y-Axis Travel (mm): | 1100 | Z-Axis Travel (mm: | 700 |
| U-Axis Travel (mm): | ±90° | V-Axis Travel (mm): | ±360° |
| W-Axis Travel (mm): | ±360° | ||
| High Light: |
Automatic Brass Tube CNC Polishing Machine,Rotary Automatic CNC Polishing Machine,35KW Rotary Automatic Polishing Machine |
||
Product Description

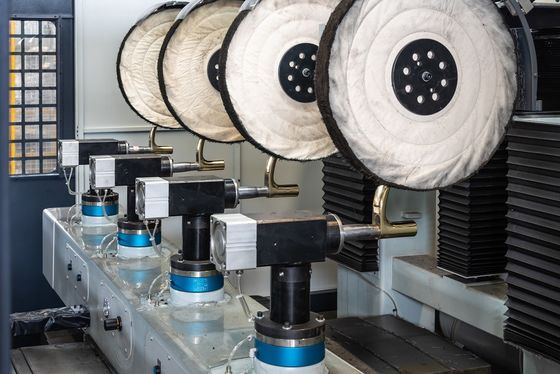

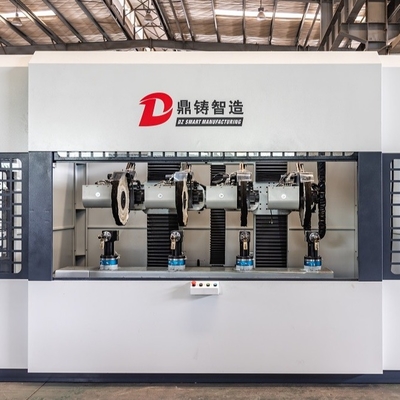

High Efficient Rotary Automatic Brass Tube CNC Polishing Machine No Need Dusting
Precision polishing.
- Uniform polishing quality without deformation of the processed parts.
- High production. Simultaneous polishing of two equal parts in each polishing cycle.
- Flexible production. Change of series in the minimum time. The time invested in the preparation of the machine for changing the type of part to polish is about 10 minutes.
- Quick replacement of the fixtures.
- Quick replacement of the polishing mops.
- Cost-reduction in the amount of fixtures.
- Important reduction in mops and polishing compounds consumption.
- Polishing system avoiding excessive temperature of the parts during the working process.
- Quick and easy programming. Interactive Teach System.
- High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.
TECHNICAL PARAMETERS
| No | Items | Specifications |
| 1 | Dimensions (L*W*H) | 3000*3100*2900mm |
| 2 | Machine Power | 17KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1100 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±60° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |
The Automatic Polishing Machine is carefully packaged in a durable cardboard box to ensure it is delivered in perfect condition.
The box is then taped shut and labeled with the necessary shipping details, such as the shipping address, product weight, and dimensions.
Once the package is prepared, it is shipped via a reliable carrier, such as UPS or FedEx, to the destination.
Q: could you please arrange the installation and commissioning ?
A: Yes , we could and the buyer pay the charge
Q: could you arrange the production education?
A: Yes , we could and the buyer pay the charge
Q:How long the guarantee?
A: one year and charge for repair the whole life.
Q: How about the lead time and delivery time of my order?
A: Large cargo 15-25 working days, depending on the quantity, and delivered according to the agreed time.
