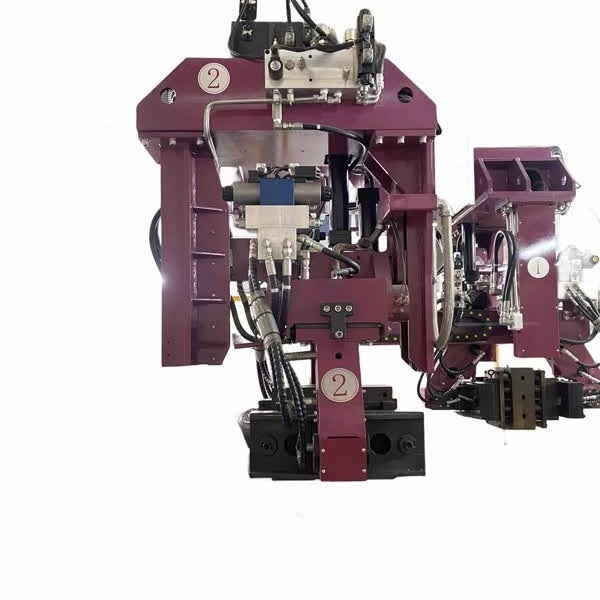

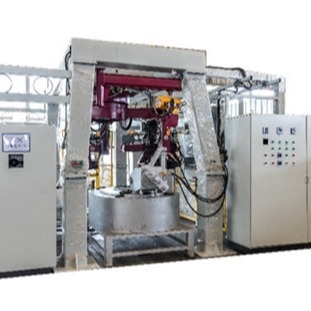

Automated Brass Low Pressure Casting Machine For Faucet Casting

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE ISO
Model Number: RD-5040-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 sets per month

Detail Information

Total Power: 125KW Hydraulic Motor Power: 8.7KW
Furnace Inductors: 3*35KW Max. Die Weight: 200Kg
Gas Pressure: 0.5bar Air Pressure Compressed Air Consumption: 15m³/H
Cooling System Flow: ≥400L/Min ≤600L/Min Max. Die Dimension: 600*400*240mm
High Light:

Automated Low Pressure Casting Machine

,

Automated Faucet Casting Machine

Product Description

Product Description:

Automated Brass Low Pressure Casting Machine For Faucet Casting 0Automated Brass Low Pressure Casting Machine For Faucet Casting 1Automated Brass Low Pressure Casting Machine For Faucet Casting 2Automated Brass Low Pressure Casting Machine For Faucet Casting 3



Features:

1. Precision Casting.

2. Efficient Production.

3. Material Advantages.

4. Automated Processes.

5. Rapid Mold Change Capability.

6. High-Density Castings.

Technical Parameters:

Properties Parameters
Equipment Size:L*W*H 5200*5000*3600mm
Total Weight 13T
Total power 125KW
Voltage 380V
Max. Die Dimensions 600*400*240mm
Max. Die Thickness 2*120mm
Max. Die Opening stroke 370mm
Max.Die Weight 200Kg
Max. force of die closing 2400KG
Max. force of ejector 500KW
Max. die ejector stroke 48mm
Furnace Melting rate 350KG/H
Furnace Capacity 1800KG
Furnace Inductors 3*35KW
Hydraulic Motor Power 8.7KW
Hydraulic Rated Pressure 8Mpa
Hydraulic fluid temperature ≤52℃
Cooling system Water PH value 7~8.5
Cooling system Pressure 3-5bar
Cooling system Temp. 20±2℃
Cooling system Flow ≥400L/Min ≤600L/Min
Air pressure Compressed air pressure 0.5-0.6Mpa
Air pressure Compressed air consumption 15m³/H

Applications:

1.Manufacturing Bathroom Accessories: Brass low-pressure casting machines are commonly used to manufacture bathroom accessories such as faucets, showerheads, faucet handles, and components for other sanitary equipment. The high corrosion resistance and decorative properties of brass make it an ideal material for bathroom products.

2.Water Meter Manufacturing: Brass low-pressure casting machines are used to produce the casings and internal components of water meters. Brass's excellent thermal conductivity and electrical conductivity make it an ideal material for water meters, aiding in accurate water measurement and recording.

3.Valve Manufacturing: Valves play a crucial role in industrial processes, and brass low-pressure casting machines are employed to manufacture high-quality valve components, ensuring their reliability and durability.

4.Automotive Components: In the automotive manufacturing industry, brass low-pressure casting machines can be used to produce various components such as engine parts, brake components, and transmission system parts.

Instruments and Gauges: Some high-precision instruments and gauges require brass parts to ensure their accuracy and stability



Support and Services:

Low Pressure Die Casting Machine Technical Support and Service

We provide comprehensive technical support and service for our Low Pressure Die Casting Machines. Our services include:

  • Troubleshooting any problems that arise with the machine
  • Installation and setup of the machine
  • Inspection and maintenance of the machine
  • Upgrades and parts replacement
  • Operator training
  • Productivity improvement advice

We strive to provide the best technical support and service to our valued customers. Please feel free to contact us with any questions or concerns.



Packing and Shipping:

Packaging and Shipping for Low Pressure Die Casting Machine:

The Low Pressure Die Casting Machine is securely packaged with a combination of foam, shrink wrap, and carton to ensure it arrives to the customer’s destination in perfect condition. The shipment is then transported via air, sea or land with a reliable freight forwarder.
