Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE ISO |
| Model Number: | RD-5040-S |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 3 sets per month |
|
Detail Information |
|||
| Total Weight: | 13T | Cooling System Flow: | ≥400L/Min ≤600L/Min |
|---|---|---|---|
| Gas Flow: | 0.225m³/h | Max. Die Opening Stroke: | 370mm |
| Equipment Size:L*W*H: | 5200*5000*3600mm | Hydraulic Fluid Temperature: | ≤55℃ |
| Voltage: | 380V | Furnace Inductors: | 3*35KW |
| High Light: | 13T Die Casting Machine,Valve Pressure Die Casting Machine |
||

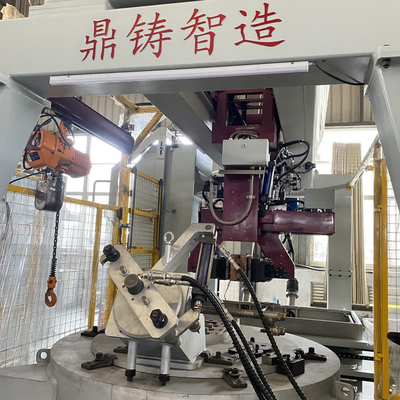

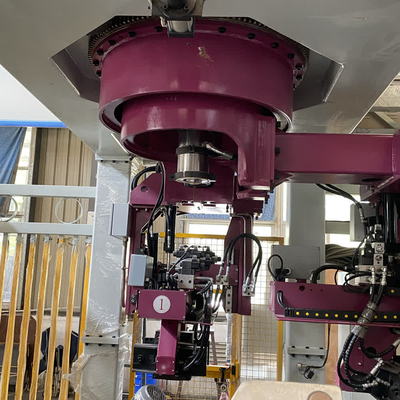

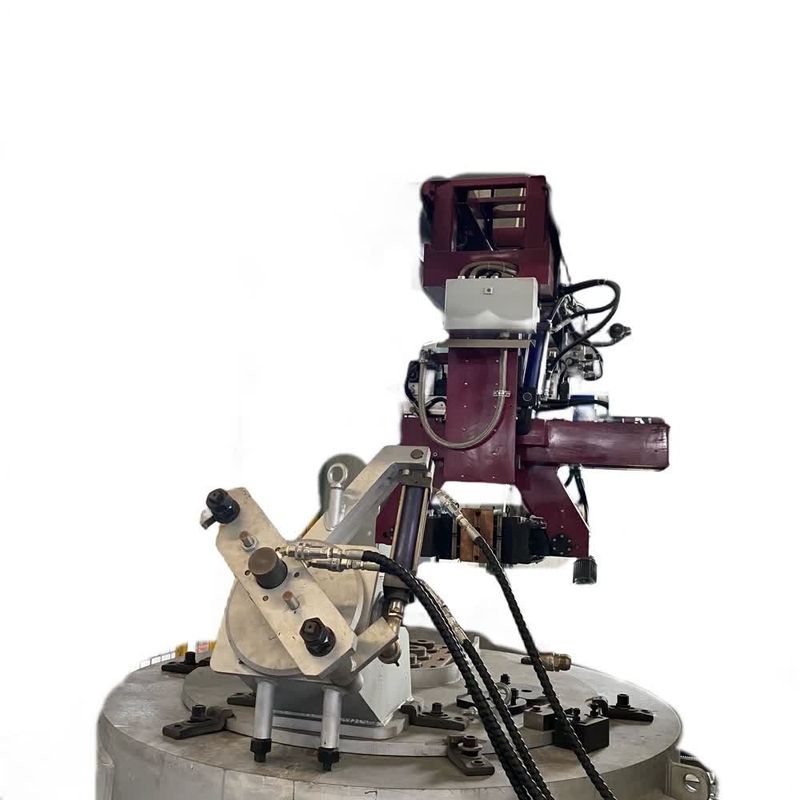

Product Description
1. Precision Casting.
2. Efficient Production.
3. Automated Processes.
4. Rapid Mold Change Capability.
| Properties | Parameters |
| Equipment Size:L*W*H | 5200*5000*3600mm |
| Total Weight | 13T |
| Total power | 125KW |
| Voltage | 380V |
| Max. Die Dimensions | 600*400*240mm |
| Max. Die Thickness | 2*120mm |
| Max. Die Opening stroke | 370mm |
| Max.Die Weight | 200Kg |
| Max. force of die closing | 2400KG |
| Max. force of ejector | 500KW |
| Max. die ejector stroke | 48mm |
| Furnace Melting rate | 350KG/H |
| Furnace Capacity | 1800KG |
| Furnace Inductors | 3*35KW |
| Hydraulic Motor Power | 8.7KW |
| Hydraulic Rated Pressure | 8Mpa |
| Hydraulic fluid temperature | ≤52℃ |
| Cooling system Water PH value | 7~8.5 |
| Cooling system Pressure | 3-5bar |
| Cooling system Temp. | 20±2℃ |
| Cooling system Flow | ≥400L/Min ≤600L/Min |
| Air pressure Compressed air pressure | 0.5-0.6Mpa |
| Air pressure Compressed air consumption | 15m³/H |
1. Manufacturing Bathroom Accessories: Brass low-pressure casting machines are commonly used to manufacture bathroom accessories such as faucets, showerheads, faucet handles, and components for other sanitary equipment. The high corrosion resistance and decorative properties of brass make it an ideal material for bathroom products.
2. Water Meter Manufacturing: Brass low-pressure casting machines are used to produce the casings and internal components of water meters. Brass's excellent thermal conductivity and electrical conductivity make it an ideal material for water meters, aiding in accurate water measurement and recording.
3. Valve Manufacturing: Valves play a crucial role in industrial processes, and brass low-pressure casting machines are employed to manufacture high-quality valve components, ensuring their reliability and durability.
4. Automotive Components: In the automotive manufacturing industry, brass low-pressure casting machines can be used to produce various components such as engine parts, brake components, and transmission system parts.
Instruments and Gauges: Some high-precision instruments and gauges require brass parts to ensure their accuracy and stability
We provide technical support and services for Low Pressure Die Casting Machine. Our technical support and services includes:
Our technical support and services team is committed to providing you with the most comprehensive and reliable service available.
Packaging and Shipping for Low Pressure Die Casting Machine:
The Low Pressure Die Casting Machine will be securely packaged in wooden crates equipped with foam cushioning and additional wrapping. The crates will be labeled with the product information and shipping details. All packages will be insured and shipped with a reliable carrier.
