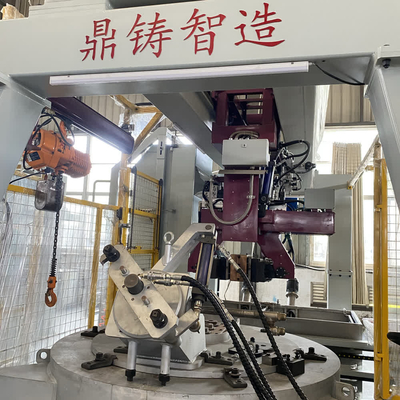

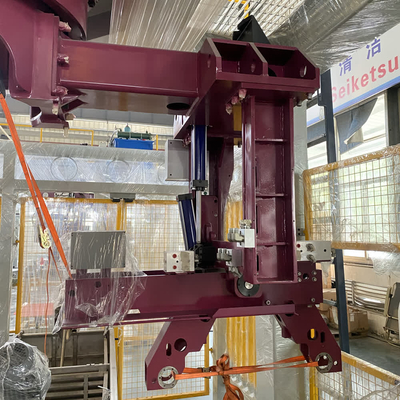

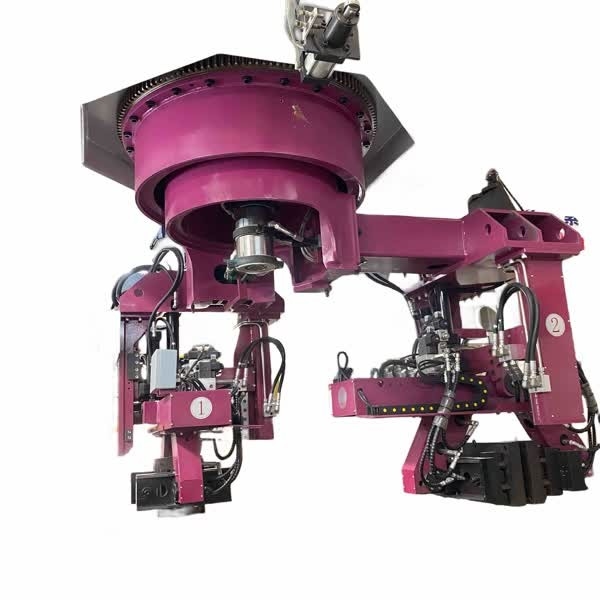

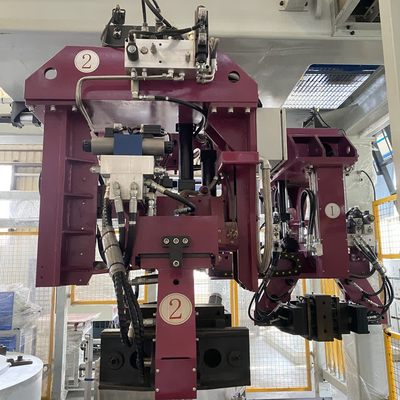

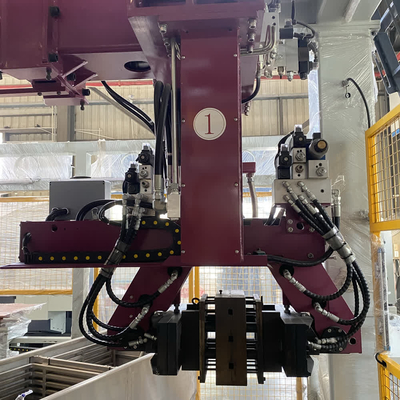

Industrial Brass Mold Low Pressure Die Casting Machine For Casting Faucets

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE ISO
Model Number: RD-5040-S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 20 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3 sets per month

Detail Information

Gas Flow: 0.225m³/h Cooling System Pressure: 3-5bar
Hydraulic Fluid Temperature: ≤55℃ Max. Die Opening Stroke: 370mm
Max. Force Of Ejector: 500kg Max. Force Of Die Closing: 2400kg
Voltage: 380V Hydraulic Motor Power: 8.7KW
High Light:

Mold Die Casting Machine

,

Faucets Casting Machine

,

Industrial Brass Mold Casting Machine

Product Description

Product Description:

Industrial Brass Mold Low Pressure Die Casting Machine For Casting Faucets 0Industrial Brass Mold Low Pressure Die Casting Machine For Casting Faucets 1Industrial Brass Mold Low Pressure Die Casting Machine For Casting Faucets 2Industrial Brass Mold Low Pressure Die Casting Machine For Casting Faucets 3Industrial Brass Mold Low Pressure Die Casting Machine For Casting Faucets 4

Features:

Fully automatic machines provide high quality and efficient production of castings.

Technical Parameters:

Parameter Value
Low Pressure Casting Machine Low Pressure Die Casting Machine, Metal Dia Casting Machine
Melting Rate 350KG/H
Hydraulic Fluid Temperature ≤55℃
Max. Die Dimension 600*400*240mm
Hydraulic Motor Power 8.7KW
Gas Pressure 0.5bar
Max. Die Opening Stroke 370mm
Max. Force of Ejector 500kg
Max. Die Thickness 2*120mm
Furnace Capacity 1800KG
Furnace Inductors 3*35KW


Applications:

Bathroom accessories, faucets, water meters, car accessories and valves are cast in brass.

Packing and Shipping:

For Low Pressure Die Casting Machine, Packaging and Shipping will be handled with the following steps:



  • Pack the Low Pressure Die Casting Machine into a custom designed wooden crate.
  • Securely fasten the Low Pressure Die Casting Machine to the wooden crate with straps.
  • Utilize a pallet for extra support and stability when moving the Low Pressure Die Casting Machine.
  • Cover the Low Pressure Die Casting Machine with a protective material (e.g. bubble wrap).
  • Ship the Low Pressure Die Casting Machine with a reliable carrier.
  • Track the shipment of the Low Pressure Die Casting Machine throughout its journey.


FAQ:

  • Q: What is the brand name of the Low Pressure Die Casting Machine?
    A: The brand name is DZ.
  • Q: What is the model number of the Low Pressure Die Casting Machine?
    A: The model number is RD-5040-S.
  • Q: Where is the Low Pressure Die Casting Machine manufactured?
    A: The Low Pressure Die Casting Machine is manufactured in China.
  • Q: What certifications does the Low Pressure Die Casting Machine have?
    A: The Low Pressure Die Casting Machine is certified with CE and ISO.
  • Q: What is the purpose of the Low Pressure Die Casting Machine?
    A: The Low Pressure Die Casting Machine is used for die casting of metal parts.
