Two Stations Automatic Polishing Machine For Bathroom Faucet Polishing

Product Details:
Place of Origin: CHINA
Brand Name: DZ
Certification: CE ISO
Model Number: NC62
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wood
Delivery Time: 30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1 set /per month

Detail Information

Y-Axis Travel: 900mm W-axis Max. Speed: 30°/sec.
Max. Diameter Of Polishing Wheel: 600mm V-Axis Travel: ±360°
Z-Axis Travel: 700mm X-axis Max. Speed: 20m/min
Dimensions(L*W*H): 3000*3100*2900mm U-axis Max. Speed: 30°/sec.
High Light:

2 Stations Polishing Machine

,

Bathroom Faucet Automatic Polishing Machine

Product Description

Two-Stations Automatic Polishing Machine,High Production,Use For Bathroom Faucet Polishing.

Product Description:

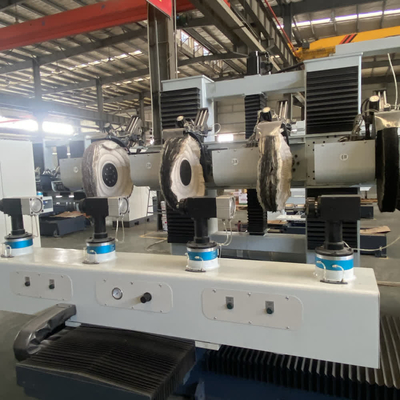

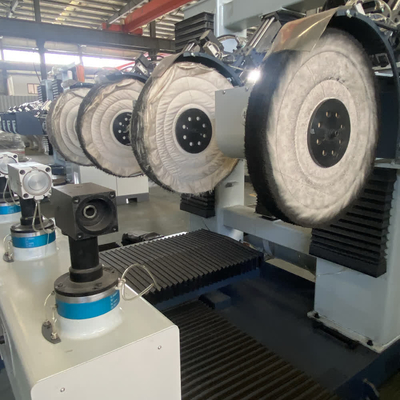

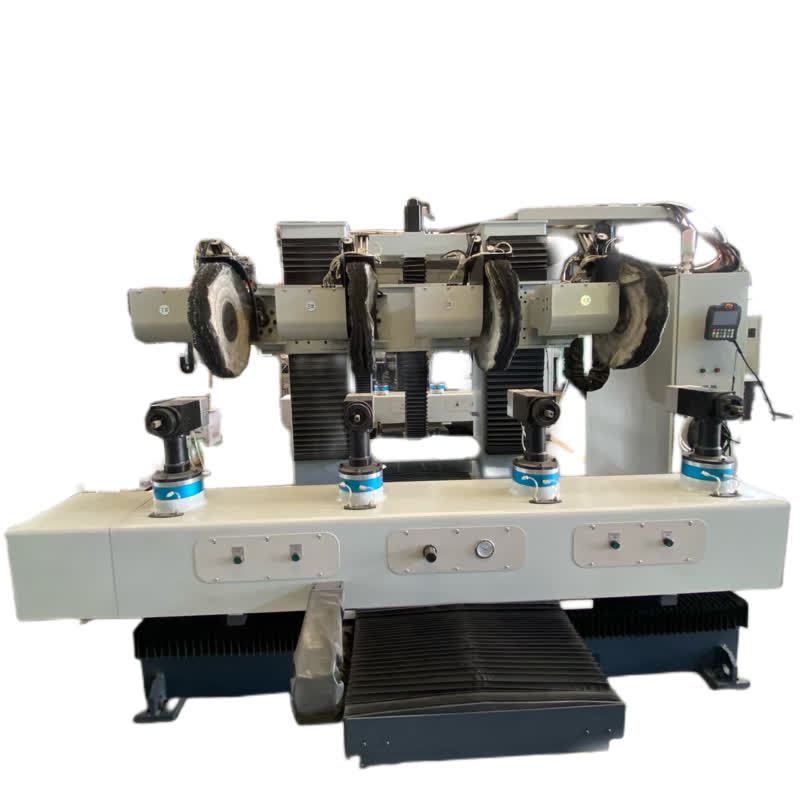

Two Stations Automatic Polishing Machine For Bathroom Faucet Polishing 0Two Stations Automatic Polishing Machine For Bathroom Faucet Polishing 1Two Stations Automatic Polishing Machine For Bathroom Faucet Polishing 2Two Stations Automatic Polishing Machine For Bathroom Faucet Polishing 3

Features:

  • Precision polishing.
  • Quick replacement of the fixtures.
  • Quick and easy programming.
  • Important reduction in mops and polishing compounds consumption.


Technical Parameters:

Parameter Value
Dimensions(L*W*H) 3000*3100*2900mm
Machine Power 17KW
Rated Voltage 380V
Max.Diameter of polishing wheel 600mm
Min.Diameter of polishing wheel 400mm
X-Axis travel (mm) 1100
Y-Axis travel(mm) 900
Z-Axis travel(mm) 700
U-Axis travel(mm) ±60°
V-Axis travel(mm) ±360°
W-Axis travel(mm) ±360°
Max. Speed X axis 20m/min
Max. Speed Y axis 20m/min
Max. Speed Z axis 20m/min
Max. Speed U axis 30°/sec
Max. Speed V axis 30°/sec
Max. Speed W axis 30°/sec

Applications:

The DZ NC62 Automatic Polishing Machine is a highly specialized polishing equipment certified by CE and ISO. It is designed with a maximum speed of 20m/min and a power of 17KW, making it perfect for various polishing tasks. Its maximum diameter of polishing wheel is up to 600mm, while its minimum diameter of polishing wheel is 400mm, making it suitable for a wide range of polishing needs.





Packing and Shipping:

The Automatic Polishing Machine is packaged and shipped with the following items:

  • Automatic Polishing Machine
  • User Manual
  • Power cord
  • Accessories

The package is securely sealed and padded before shipping.



FAQ:

Q&A
Q1: What is the brand name of the Automatic Polishing Machine?
A1: The brand name of the Automatic Polishing Machine is DZ.
Q2: What is the model number of the Automatic Polishing Machine?
A2: The model number of the Automatic Polishing Machine is NC62.
Q3: Where is the Automatic Polishing Machine made?
A3: The Automatic Polishing Machine is made in China.
Q4: What certifications does the Automatic Polishing Machine have?
A4: The Automatic Polishing Machine is certified with CE and ISO.
Q5: What are the features of the Automatic Polishing Machine?
A5: The Automatic Polishing Machine is equipped with high-precision automation control system, which can realize automatic polishing, grinding, waxing, etc.
