Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE ISO |
| Model Number: | RD-7050-S |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 30 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1 set /per month |
|
Detail Information |
|||
| Cooling System Water PH Value: | 7~8.5 | Furnace Inductors: | 3*35KW |
|---|---|---|---|
| Max. Die Thickness: | 2*120mm | Hydraulic Rated Pressure: | 8Mpa |
| Furnace Capacity: | 1800KG | Max. Die Weight: | 200Kg |
| Hydraulic Fluid Temperature: | ≤55℃ | Max. Force Of Die Closing: | 2400kg |
Product Description

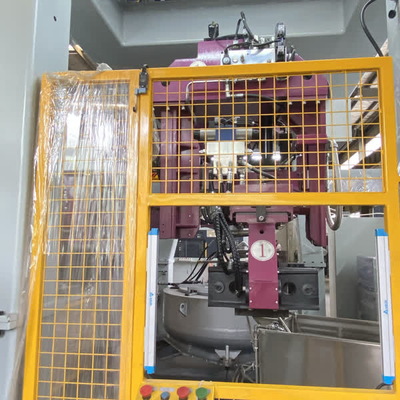

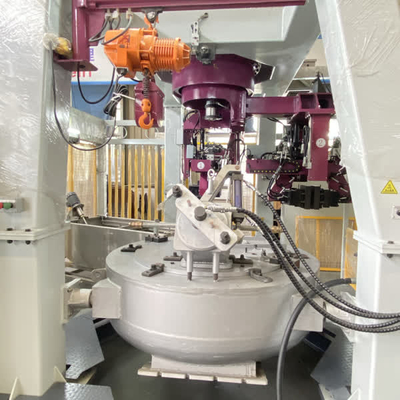

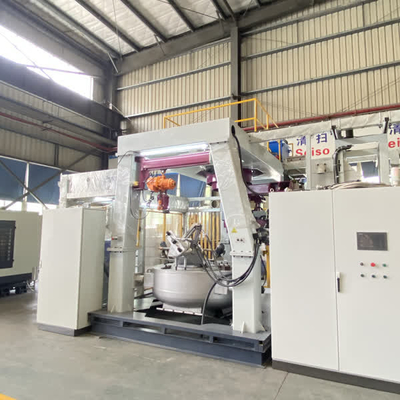

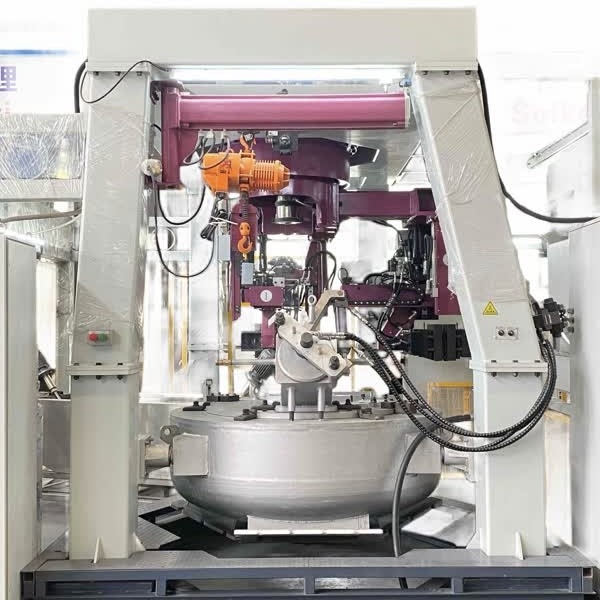

The Low Pressure Die Casting Machine is an advanced piece of equipment used to produce metal parts with excellent accuracy and precision.
| Properties | Parameters |
|---|---|
| Equipment Size:L*W*H | 5200*5000*3600mm |
| Total Weight | 13T |
| Total power | 125KW |
| Voltage | 380V |
| Max. Die Dimensions | 600*400*240mm |
| Max. Die Thickness | 2*120mm |
| Max. Die Opening stroke | 370mm |
| Max.Die Weight | 200Kg |
| Max. force of die closing | 2400KG |
| Max. force of ejector | 500KW |
| Max. die ejector stroke | 48mm |
| Furnace Melting rate | 350KG/H |
| Furnace Capacity | 1800KG |
| Furnace Inductors | 3*35KW |
| Hydraulic Motor Power | 8.7KW |
| Hydraulic Rated Pressure | 8Mpa |
| Hydraulic fluid temperature | ≤52℃ |
| Cooling system Water PH value | 7~8.5 |
| Cooling system Pressure | 3-5bar |
| Cooling system Temp. | 20±2℃ |
| Cooling system Flow | ≥400L/Min ≤600L/Min |
| Air pressure Compressed air pressure | 0.5-0.6Mpa |
| Air pressure Compressed air consumption | 15m³/H |
For the production of large quantities of high quality brass castings.
Low Pressure Die Casting Machine is packaged in a cardboard box and then shipped in a wooden crate. The crate is designed to protect the machine from damage during shipping. The wooden crate is also designed to be easily handled by forklifts and pallet jacks for easy transport. Shipping labels are affixed to the crate for easy tracking and identification.
Q1: What is the Brand Name of the Low Pressure Die Casting Machine?
A1: The Brand Name of the Low Pressure Die Casting Machine is DZ.
Q2: What is the Model Number of the Low Pressure Die Casting Machine?
A2: The Model Number of the Low Pressure Die Casting Machine is RD-7050-S.
Q3: Where is the Low Pressure Die Casting Machine made?
A3: The Low Pressure Die Casting Machine is made in China.
Q4: Does the Low Pressure Die Casting Machine have any certifications?
A4: Yes, the Low Pressure Die Casting Machine has CE and ISO certifications.
Q5: What are the features of the Low Pressure Die Casting Machine?
A5: The Low Pressure Die Casting Machine has features such as precise temperature control, high pressure die casting, and low pressure die casting.
