Detail Information
Machine Size（LWH）:	260023002700mm	Repeat Positioning Accuracy:	JIS±0.003/300mm
Air Pressure:	≥6kg/c M³	Tool Magazine Capacity:	24pcs
Taper Specification:	10000/1200/15000/1800	Distance From Spindle Nose To Worktable:	120-770mm
Distance From Spindle Center To Column Guide Surface:	690mm	Z-axis Stroke:	650mm
High Light:	CNC Tapping and Drilling Machine , 3KW Axis Motor Drilling Machine

Product Description

Product Description:

This Computer-Numerical-Control Tapping Machine is capable of performing precise and accurate tapping and drilling operations, and is suitable for a wide range of industrial applications. It is easy to operate and maintain, and can be used in a variety of working environments. With its advanced features, this machine is the perfect choice for any professional.

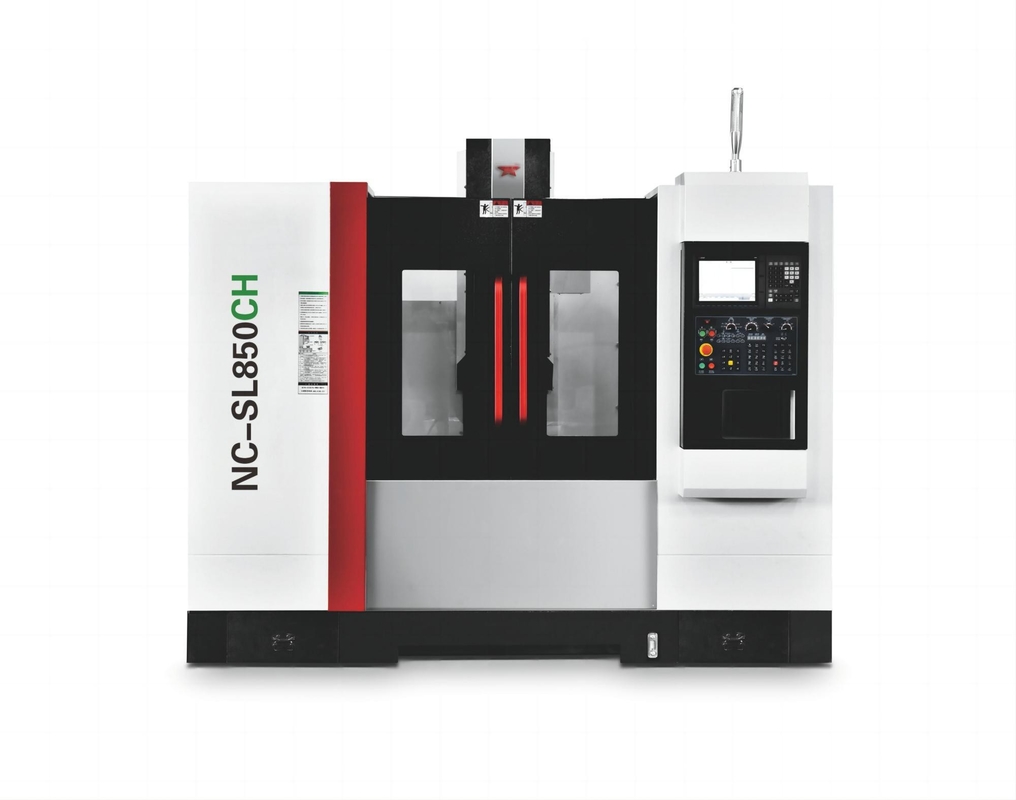

CNC Tapping and Drilling Machine with 3/3/3KW Three Axis Motor 0

Technical Parameters:

Product Attributes	Details
CNC Drilling Machine	Computerized Numerical-Control Tapping and Drilling Machine, Computer-Numerical-Control Tapping Machine
X-axis stroke	1100mm
Y-axis stroke	650mm
Z-axis stroke	650mm
Distance from Spindle center to column guide surface	120-770mm
Distance from Spindle center to column guide surface	690mm
Working table size	1200×650mm
Max.Load	1000kg
Size of T-shape groove	5-18/110
Taper specification	BT40/BBT40
Taper specification	10000(standard)/1200/15000/1800
Spindle motor	11KW
Three-axis motor(X/Y/Z)	3/3/3
XYZ axis Quick travel rate	36/36/36 m/min
XYZ axis rail specification	45/45/45
Chip feed rate	0-10000 mm/min
Positioning accuracy	JIS±0.005/300 mm
Repeat positioning accuracy	JIS±0.003/300 mmm
Air pressure	≥6 kg/c m³
Tool magazine capacity	N24pcs
Machine size(L×W×H)	2600×2300×2700mm

Applications:

Hardware,molds,auto parts,communications,IT industry,medical equipment,aerospace.

Support and Services:

Technical Support and Service for CNC Tapping and Drilling Machine (New)

We provide comprehensive technical support and service for our CNC Tapping and Drilling Machine (New). Our technical support team is available 24/7 to answer your questions or concerns, and to troubleshoot any issues you may experience with this machine. We also provide a variety of maintenance services to keep your machine running optimally. Our services include:

Troubleshooting and repair of machine components
Regular maintenance and inspection of machine parts
Software and firmware updates
Replacement of worn or damaged parts
Training and instruction on machine operation and safety

If you have any questions or require technical support or service, please contact us and we will be glad to help. Thank you for choosing our CNC Tapping and Drilling Machine (New).

Packing and Shipping:

Packaging and Shipping for CNC Tapping and Drilling Machine (New)

The machine will be packaged in a wooden crate and strapped to ensure safety during transportation.
The package will include all components of the machine, including the control unit and operating instructions manual.
It is important to follow the instructions for proper handling and care of the machine during shipping and delivery.
Upon delivery, the recipient should inspect the package and machine for any signs of damage.

FAQ:

Q1: What is the brand name of this CNC Tapping and Drilling Machine (New)?: A1: The brand name of this CNC Tapping and Drilling Machine (New) is DZ.
Q2: What is the model number of this CNC Tapping and Drilling Machine (New)?: A2: The model number of this CNC Tapping and Drilling Machine (New) is NC-SL1165.
Q3: Where is this CNC Tapping and Drilling Machine (New) made from?: A3: This CNC Tapping and Drilling Machine (New) is made in China.
Q4: Does this CNC Tapping and Drilling Machine (New) support automatic feed?: A4: Yes, this CNC Tapping and Drilling Machine (New) supports automatic feed.
Q5: What is the maximum drilling diameter of this CNC Tapping and Drilling Machine (New)?: A5: The maximum drilling diameter of this CNC Tapping and Drilling Machine (New) is 25mm.

Tag:

Product Details:
Place of Origin:	CHINA
Brand Name:	DZ
Certification:	CE
Model Number:	NC-SL1165
Payment & Shipping Terms:
Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	wood
Delivery Time:	30 work days
Payment Terms:	L/C, Western Union, MoneyGram
Supply Ability:	1 set /per month

CNC Tapping and Drilling Machine with 3/3/3KW Three Axis Motor
