Detail Information
Warranty:	1 Year	Application:	Industry,Sanitary Accessories，Faucets,Water Meter
Process:	Low Pressure Die Castingn For Brass	Quality Control:	100% Inspected Casting Parts
Lead Time:	45 Days
High Light:	Brass Metal Die Casting Machine , Fittings Metal Die Casting Machine , Brass Sanitary Fittings Casting Machine

Product Description

Metal Dia Casting Machine - For Brass For the Casting of Santity Fittings

Product Description:

Low Pressure Die Casting Machine is a kind of metal die casting machine which is widely used in automatic casting processes. It adopts low pressure die casting process to precisely control the casting speed and accuracy, and can cast various metal parts with complex shapes. The unique cooling system of the machine ensures a flow of ≥400L/Min ≤700L/Min, and the hydraulic fluid temperature is maintained at ≤55°. The size of the equipment is 6500*5000*3650mm, and it can exert a maximum force of 1000kg. With an average melting rate of 680KG/H, Low Pressure Die Casting Machine is an ideal choice for mass production and high precision metal die casting.

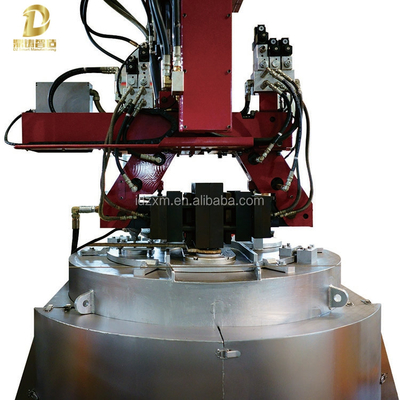

Brass Metal Die Casting Machine For the Casting of Sanitary Fittings 0

Features:

Product Name: Low Pressure Die Casting Machine
Process: Low Pressure Die Casting Process For Brass

Technical Parameters:

Parameters	Details
Equipment Size:LWH	700060004200mm
Total Weight	20T
Total Power	180KW
Voltage	380V
Max. Die Dimensions	600400240mm
Max. Die Thickness	2*120mm
Max. Die Opening Stroke	372mm
Max. Die Weight	250KG
Max. Force of Die Closing	2400KG
Max. Force of Ejector	1000KG
Max. Die Ejector Stroke	48mm
Furnace Melting Rate	680KG/H
Furnaca Capacity	2800KG
Furnace Power	165KW
Hydraulic Power	12KW
Hydraulic Rated Pressure	80pa
Hydraulic Fluid Temperature	≤55℃
Cooling System Water PH	7~8.5
Cooling System Pressure	3bar
Cooling System Water Temperature	20-25℃
Cooling System Flow	≥300L/Min ≤600L/Min
Air Pressure Compressed Air Pressure	0.5-0.6Mpa
Air Pressure Compressed Air Consumption	18m³/H

Applications:

The DZ RD-7050-S Low Pressure Die Casting Machine is a reliable and efficient metal die casting machine made in China. It is certified with CE ISO and provides great control of the low pressure die casting process. This machine is ideal for producing aluminum alloy die casting parts with excellent surface finish and accurate dimensions. The melting rate of 680kg/h allows for high production capacity and quick turnarounds. The cooling system flow of 400-700l/min ensures that it cools quickly and accurately, while the air pressure compressed air consumption of 18m³/h and air pressure compressed air pressure of 0.5-0.6Mpa ensures the die casting process is reliable and energy-efficient. The cooling system water temperature of 20-25℃ ensures that it runs efficiently and reliably. This low pressure die casting machine is ideal for producing high-quality aluminium castings with excellent dimensional accuracy and surface finish.

Customization:

Customized Low Pressure Die Casting Machine

We provide customized Low Pressure Die Casting Machine with brand name DZ and model number RD-7050-S. Our machine is certified with CE ISO and manufactured in China. The air pressure is 0.5-0.6Mpa, water PH of cooling system is 7~8.5, max. force of die closing is 4000kg, cooling system flow is ≥400L/Min ≤700L/Min and hydraulic power is 12KW. Our machine is a perfect choice for low pressure casting process and automatic casting process.

Support and Services:

We provide professional technical support and service for Low Pressure Die Casting Machine. Our service includes:

Quick response to customers' inquiries.
Provide assistance to customers in the installation, commissioning and maintenance of the machine.
Provide regular maintenance and inspection for the machine.
Provide spare parts and accessories for the machine.
Provide technical training to customers.

Packing and Shipping:

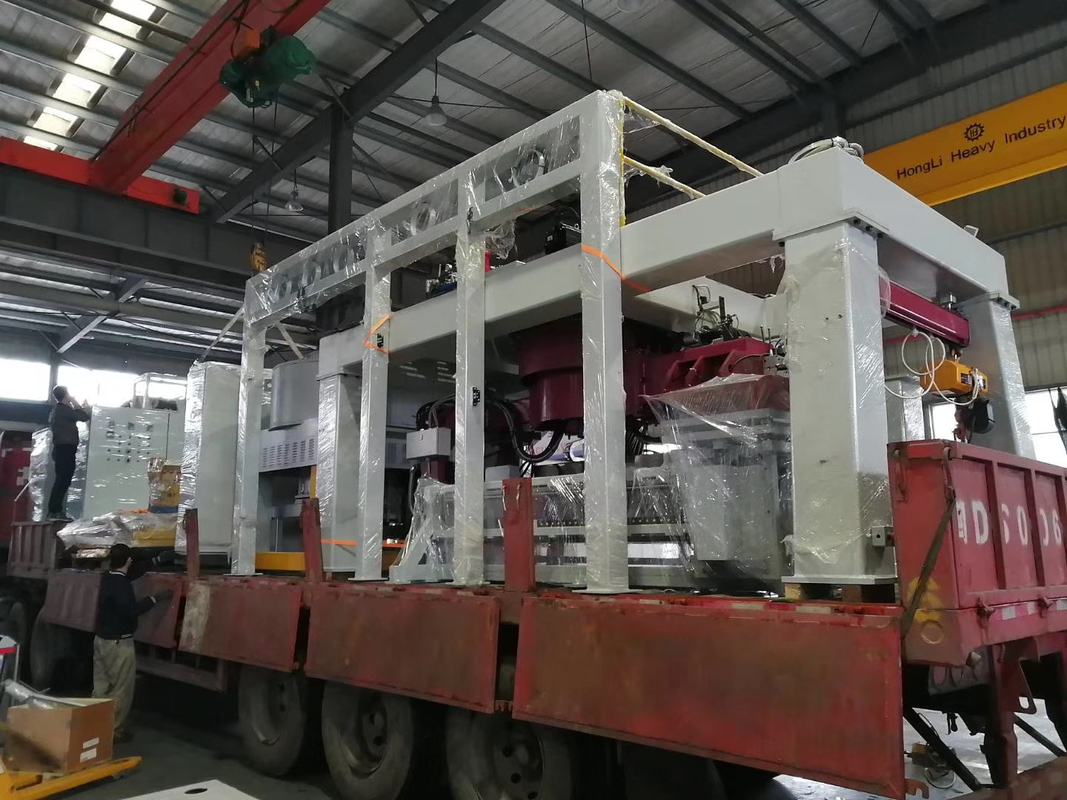

The Low Pressure Die Casting Machine is usually shipped in a container or on a flatbed truck. The container should be large enough to accommodate the machine, any necessary accessories, and any safety gear. The container should also be weatherproof and have sufficient padding and protection to prevent any damage during transport. All electrical connections should be secured and tested prior to shipping.

Before shipping, the Low Pressure Die Casting Machine should be thoroughly inspected to ensure that all parts are in good condition and working order. All necessary safety supplies should be included in the packaging, including safety glasses, ear protection, and gloves. Any necessary tools should also be included in the shipment.

The Low Pressure Die Casting Machine should be carefully loaded and secured in the container or flatbed truck, using proper techniques and materials. All shipping paperwork should be filled out and provided with the machine. The paperwork should include the sender's contact information, the receiver's contact information, and a detailed description of the contents.

Tag:

Product Details:
Place of Origin:	CHINA
Brand Name:	DZ
Certification:	CE ISO
Model Number:	RD-5040-S
Payment & Shipping Terms:
Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	wood
Delivery Time:	90days
Payment Terms:	L/C, T/T, Western Union, MoneyGram
Supply Ability:	1 set /per month

Brass Metal Die Casting Machine For the Casting of Sanitary Fittings
