Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE ISO |
| Model Number: | RD-5040-S |
|
Payment & Shipping Terms:
|
|
| Packaging Details: | wood |
| Delivery Time: | 90days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 1 set /per month |
|
Detail Information |
|||
| Max. Force Of Ejector: | 1000kg | Total Power: | 125KW |
|---|---|---|---|
| Capacity: | 1800KG | Equipment Size: | 5200*5000*3600mm |
| Max. Die Thickness: | 2*120mm | Cooling System Flow: | ≥300L/Min ≤600L/Min |
| Max. Die Dimension: | 600*400*240mm | Hydraulic Rated Pressure: | 80pa |
| High Light: | Low Pressure Die Casting Machine 13T,Low Pressure Die Casting Machine 350KG/H,Industrial Lpdc Machine |
||
Product Description

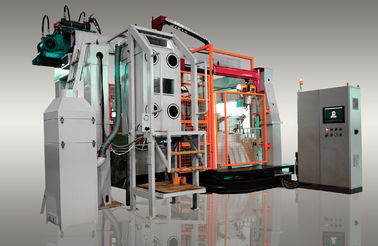

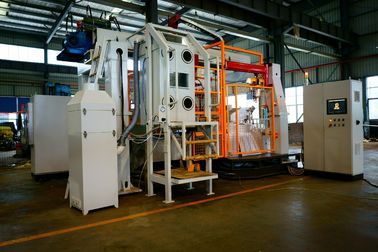

Low Pressure Die Casting Machine is a kind of specialized equipment for low pressure die casting, which is widely used in the production of various metal castings. It is characterized by its excellent performance, high production efficiency and low cost. The total weight of the machine is 13T. The air pressure compressed air consumption is 15m³/H, and the maximum die opening stroke is 372mm. The equipment size is 5200*5000*3600mm, and the maximum force of the ejector is 1000kg. Low Pressure Die Casting Machine has the advantages of high precision, low failure rate, low energy consumption, and high production efficiency, which can meet the requirements of various mass production.
| Technical Parameter | Value |
|---|---|
| Max. Force of Die Closing | 2400kg |
| Total Power | 125KW |
| Furnace Power | 165kw |
| Cooling System Water Temperature | 20-25℃ |
| Max. Die Opening Stroke | 372mm |
| Cooling System Water PH | 7~8.5 |
| Cooling System Flow | ≥300L/Min ≤600L/Min |
| Melting Rate | 350KG/H |
| Cooling System Pressure | 3bar |
| Max. Die Dimension | 600*400*240mm |
The Low Pressure Die Casting Machine from DZ, with model number RD-5040-S, is a reliable and efficient choice for die casting needs. It is professionally manufactured and certified by CE ISO in CHINA. It is designed to work with hydraulic fluid temperature of ≤55° and air pressure compressed air consumption of 15m³/H. With a capacity of 1800KG and a max. die weight of 250Kg as well as a max. die dimension of 600*400*240mm, it is suitable for a wide range of die casting applications. It is a sturdy and reliable low pressure die caster machine to meet the needs of industrial users.
We provide customized low pressure die casting machine for our customers, suitable for many kinds of die-casting technology. Features include:
Our low pressure die casting equipment is ideal for low pressure die casting operations. It is reliable, efficient and cost-effective. Our low pressure die caster machine is designed to meet your needs and help you achieve maximum productivity. Our low pressure die casting machine is perfect for applications where precision and accuracy are key. Contact us today to learn more about our customized low pressure die casting machine and how it can help you.
Low Pressure Die Casting Machine offers technical support and service for the product. The technical support includes:
The service includes:
Packaging and Shipping for Low Pressure Die Casting Machine:
The Low Pressure Die Casting Machine will be shipped in a wooden crate for protection. The crate will be labelled with proper shipping documents and information. The crate will also be shrink-wrapped and secured with plastic straps to prevent any type of damage during transit. All necessary steps will be taken to ensure that the Low Pressure Die Casting Machine is secure and safe during the entire shipping process.
