Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DZ |
| Certification: | CE |
| Model Number: | NC64 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 Sets per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | Condition: | New |
|---|---|---|---|
| Use: | Maching，Grinding，Polishing | ||
| High Light: | Automated CNC Polishing Machine,CE CNC Polishing Machine,35KW Automated Polishing Machine |
||
Product Description
This CNC Polishing Machine is the perfect solution for surface polishing of metal and other materials. It is designed for precision and efficiency, with W-axis maximum speed of 30°/sec, Y-axis maximum speed of 20m/min, Z-axis maximum speed of 20m/min, and a total machine power of 35KW. It also has an impressive dimensions of 4400*3400*2900mm, making it suited for a range of applications. This metal surface polishing machine is perfect for achieving the highest quality surface finish. It is equipped with advanced controls and a user-friendly interface, allowing for easy operation and maximum productivity.

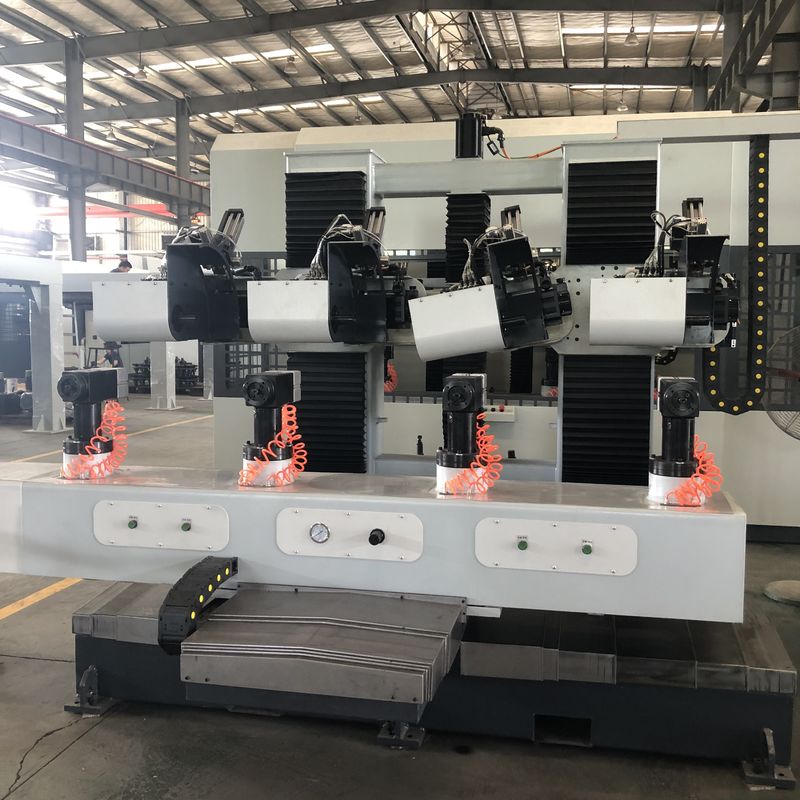

DZ NC64 CNC Polishing Machine is a high-efficiency surface polishing equipment developed by our company, which is designed for polishing large and complex parts. It is widely used in industries such as aerospace, automotive, medical, and consumer electronics. It has the following features:
The DZ NC64 CNC Polishing Machine is suitable for industrial polishing, automatic polishing and surface polishing. It has a Z-axis travel of 700mm, an X-axis travel of 1000mm, an X-axis maximum speed of 20m/min, and a W-axis travel of ±720°. The dimensions are 4400*3400*2900mm. It has passed the CE certification, and is a reliable and efficient choice for large and complex polishing projects.
| Code | Item | Specifications |
| 1 | Dimensions (L*W*H) | 4400*3400*2900mm |
| 2 | Machine Power | 35KW |
| 3 | Rated Voltage | 380V 50Hz |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1000 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±90° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |
We provide technical support and service for CNC polishing machines. Our support team is available 24/7 and can help you with any issue you may have with your machine.
We offer technical advice and troubleshooting assistance for CNC polishing machines, as well as spare parts and accessories. We can also provide on-site repair and maintenance services for your machine.
We are committed to providing excellent customer service and technical support for CNC polishing machines. If you have any questions or need assistance, please don't hesitate to contact us.
CNC Polishing Machine Packaging and Shipping:
The CNC Polishing Machine is packaged with a foam-filled box to ensure secure shipping and minimize the chance of damage. The box is then placed in an appropriate sized shipping container and secured with palletizing or other appropriate materials. The container is then shipped to the customer's designated location through a carrier.
