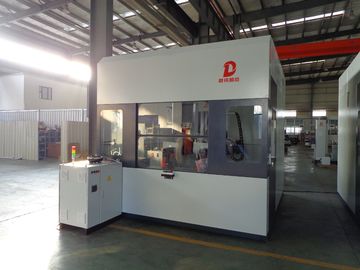

Manipulator Robotics CNC Polishing Machine Full Digital Control For Auto Spare Parts

Manipulator Robotics CNC Polishing Machine Full Digital Control For Auto Spare Parts

Manipulator Robotics CNC Polishing Machine Full Digital Control For Auto Spare Parts
Manipulator Robotics CNC Polishing Machine Full Digital Control For Auto Spare Parts

Large Image :  Manipulator Robotics CNC Polishing Machine Full Digital Control For Auto Spare Parts Get Best Price

Product Details:

Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: NC-64

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 units/per month
Detailed Product Description
Condition: New Warranty: 1 Year
Application: Auto Spare Parts Name: CNC Polishing Machine
Power: 35KW Voltage: 380V
High Light:

industrial metal polishing machine

,

cnc grinding machine

manipulator robotics automatic polishing machine for stainless steel





I. APPLICAITONS:

1. Faucets

2. Auto spare parts

3. Locks and door handles

4. All kids of metals and jewelry accessory

5. Size range of polishing productsΦ 280*280



Manipulator Robotics CNC Polishing Machine Full Digital Control For Auto Spare Parts 0



2.1 Product feature:



2.2.1The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency.

2.2.2 The control system adopts PROMAX motion control technology from Italy,stable propeert,high control accracy.

2.2.3 Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.

2.2.4 Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction

2.2.5 Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;

2.2.6Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid wax or liquid wax

2.2.7Full digital control, Can store 50 programs.Programs can be saved and invoked at any time.

2.2.8 CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.



2.3 TECHNICAL PARAMETERS



No.

Item

Parameters

1

Dimensions (L*W*H)

5000*3400*3000(L*W*H)

2

Machine Power

35KW

3

Rated Voltage

380V

4

Max. Diameter of polishing wheel

600mm

5

Min. Diameter of polishing wheel

400mm

6

X-Axis travel (mm)

1200

7

Y-Axis travel (mm)

1100

8

Z-Axis travel (mm)

700

9

U-Axis travel (mm)

±90°

10

V-Axis travel (mm)

±360°

11

W-Axis travel (mm)

±360°



2.4 BASIC EQUIPMENT



No.

Device name

Brand

Remark

1

Motion control system

PROMAX Italy



2

Servo motor

PROMAX Italy



3

Variable frequency compensation system+Control card

AELTA



4

Cloth wheel motor spindle

SIEMENS

·

5

Main low voltage electrical

SCHNEIDER



6

Linear guide rail and screw

HIWIN

·

7

Reduction box

Rossi Italy



8

Bearing

NSK



9

Steering gear of fixture

TAIWAN





III Warranty:1 YEAR

IV After-sales service



Under warranty:



4.1 DZ warrants that under normal circumstances,upon receiptof the notification of the customer’s after-sales service requirments(with fault description attached),DZ will respond to the equipment failure,diagnosis and troubleshooting within 4 hours by phone,fax or e-mail.

4.2

4.2.1 DZ shall be responsible for probiding after-sales service free of charge within the warranty period.

4.2.2 Within the warranty period, DZ shall be respond within 4 hours upon receiving the notice from the user, and the seller's personnel shall come to the site for maintenance within 12 hours for problems that cannot be solved by the buyer.

4.2.3 Free repair or repacement of faulty parts within 5 working days. During the training period in DZ's site, the end-user is responsible for all their engineer’s daily expense. 4.2.3 During the traning period in the end-user's site, the end-user is reponsible for DZ technician's daily accommodation.

4.3 Under warranty the above services and vulnerable parts free replacement.

V TRAINING SERVICE

5.1 DZ provides training service to the end-user in different stages: the equipment’s operation, Maintenance and Upgrades.

5.2

5.2.1 The buyer must cooperate with training

5.2.2 The buyer master the basic principle and debugging method of equipment through training,have the ability to use,maintain,operation and fault handling. Ability to modify, develop, and improve processes and equipment as required.



No.of trainers arranged by buyer
Training time limit < 3 days Place for training DZ’s factory
Training content

1. Systen design principle

2. Principle of mechanical control

3. Operation procedure

4. Maintenance of equipment

5. Safety knowledge

Manipulator Robotics CNC Polishing Machine Full Digital Control For Auto Spare Parts 1
