|Dimensions (L*W*H):||4400*3400*2900||Machine Power:||35KW|
|Rated Voltage:||380V||Max. Diameter Of Polishing Wheel:||600mm|
|Min. Diameter Of Polishing Wheel:||400mm||X-Axis Travel (mm):||1200|
|Y-Axis Travel (mm):||1100||Z-Axis Travel (mm:||700|
|U-Axis Travel (mm):||±90°||V-Axis Travel (mm):||±360°|
|W-Axis Travel (mm):||±360°|
cnc buffing machine,
cnc grinding machine

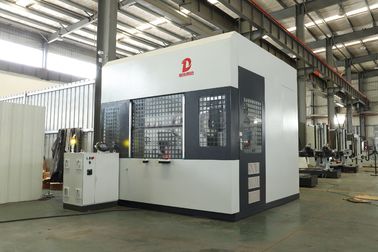

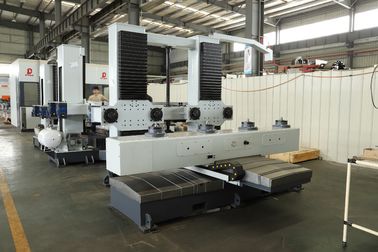

Intelligent industry robot arm milling polishing machine
1. With solid wax and liquid wax selection function, the wax can be evenly applied to the surface of the cloth wheel by using solid wax. Saves wax costs by 80% and the equipment is clean and easy to clean.
2. W-axis gear steering box:spiral bevel, small gap, high precision, high stability and durability.
3. Servo motor, high precision of torque control, accurate compensation when cloth wheel loss, guarantee product quality.
4. Air pressure counterweight, smooth movement, fast speed, light weight, safe and reliable.
5. The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; Multiple stations simultaneous operation high flexibility and high product efficiency.
6. The control system adopts PROMAX motion control technology from Italy,stable propeert,high control accracy.
7. Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program.
8. Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all direction
9. Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation;
10. Program setting of add polishing wax:free setting of wax spraying time and frequency according to the characteristics of product.choice of slid wax or liquid wax
11. Full digital control, Can store 50 programs.Programs can be saved and invoked at any time.
12. CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair.
