|Dimensions (L*W*H):||4400*3400*2900||Machine Power:||35KW|
|Rated Voltage:||380V||Max. Diameter Of Polishing Wheel:||600mm|
|Min. Diameter Of Polishing Wheel:||400mm||X-Axis Travel (mm):||1200|
|Y-Axis Travel (mm):||1100||Z-Axis Travel (mm):||700|
|U-Axis Travel (mm):||±90°||V-Axis Travel (mm):||±360°|
|W-Axis Travel (mm):||±360°||Warranty:||1 YEAR|
surface polishing machine,
cnc buffing machine

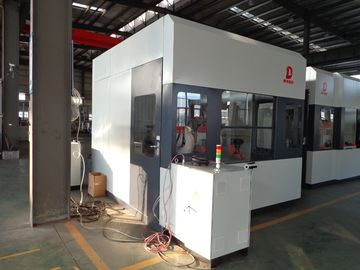

1). As a special 6-axis four-station polishing robot, this machine has six degrees of freedom, four stations working simultaneously, flexible and efficient, is widely used to polish products of sanitary, gating, auto parts, etc.
2). Adopt the advanced motion control technology to its control system, ensuring the stable performance and accurate control.
3). Programming method: teaching programming, which uses manual mode to simulate manual polishing and record it. Afterwards, the machine will polish automatically in accordance with the recorded track.
4). Auto compensation of polishing wheel: the system can detect when the torsion gets weakened after polishing cloth wheels being worn, and then compensate automatically from all directions.
5). Linear speed compensation: the system will automatically increase rotating speed to make up for linear speed m when outer diameter of cloth wheel gets smaller.
6). Wax-spraying setting: can set time and frequency of wax-spraying according to characteristics of your products.
7). Full-digital controlled, and programs can be memorized for use at anytime.
8). It is easy to set functions and parameters through touch panel. Also the touch panel can show defect codes, facilitating inspection.
