Compression Brass Plumbing Fittings Core Shooter Machine 72MM/S

Product Details:
Place of Origin: China
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: wood
Delivery Time: 20days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30sets/per month

Detail Information

Condition: New After-sales Service Provided: Engineers Available To Service Machinery Overseas,Overseas Service Center Available
Product Name: Sand Core Shooting Machine Weight: 2000kg
Voltage: 220v/380v/415v Warranty: 1 Year
High Light:

Core Shooter Machine 72MM/S

,

Brass Plumbing Fittings Core Shooter Machine

,

Plumbing Fittings Sand Core Making Machine

Product Description

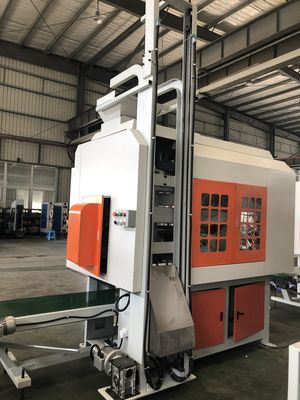

Compression Brass Plumbing Fittings Core Shooter Machine Automatic Casting Sand Core Making Machine



Maximum sand core weight 6KG
Maximum core box size 400*280*200
Heating plate 9.6KW
Core stroke 150MM
conveyor 2200*400*100MM
transfer speed 72MM/S





CHARACTERISTIC



1. human-machine interface and imported high quality electronic control and pneumatic components/hydraulic device to ensure accurate and reliable control and easy operation.



2. there are three modes: manual, single action and automatic.



3. the shooting port is 70 degrees to the sand, away from the high temperature area, so that the perforation is easy to clean manually .



4. The machine is equipped with integral moving mechanism of the base, which can make the base move along the X and Y axes, so that the perforation of the opposite mold into the sand hole more convenient and accurate.



5. The movable die is equipped with the core pulling rack to meet the special requirements of the mold.



6. The angle of the quicksand in the sand storage bucket reaches 70 degrees and is equipped with a vibrating motor. It is suitable for the use of collapsible core sand with poor fluidity in the copper casting and aluminum industry.



7. With mold adjustment space, it is convenient to assemble different molds and reduce the requirements for the die size.





Compression Brass Plumbing Fittings Core Shooter Machine 72MM/S 0Compression Brass Plumbing Fittings Core Shooter Machine 72MM/S 1Compression Brass Plumbing Fittings Core Shooter Machine 72MM/S 2Compression Brass Plumbing Fittings Core Shooter Machine 72MM/S 3Compression Brass Plumbing Fittings Core Shooter Machine 72MM/S 4
