Product Details:
|
|
| Place of Origin: | China(Mainland) |
|---|---|
| Brand Name: | DZ |
| Certification: | CE ISO |
| Model Number: | NC-64 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1unit |
| Price: | Negotiable |
| Packaging Details: | wood |
| Delivery Time: | 2weeks |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30 units/per month |
|
Detail Information |
|||
| Dimensions (L*W*H): | 4400*3400*2900 | Machine Power: | 35KW |
|---|---|---|---|
| Rated Voltage: | 380V | Max. Diameter Of Polishing Wheel: | 600mm |
| Min. Diameter Of Polishing Wheel: | 400mm | X-Axis Travel (mm): | 1200 |
| Y-Axis Travel (mm): | 1100 | Z-Axis Travel (mm: | 700 |
| U-Axis Travel (mm): | ±90° | V-Axis Travel (mm): | ±360° |
| W-Axis Travel (mm): | ±360° | ||
| High Light: | Grinding Faucet Polishing Machine,6 Axis Automatic Polishing Machine,380V Faucet Polishing Machine |
||
Product Description

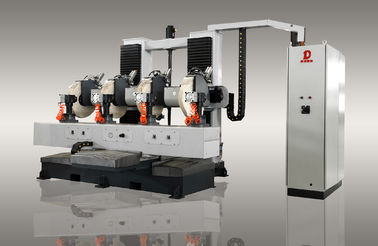

Brass Tube Metal Parts Surface Vibrating Grinding Polishing Machine
Automatic Polishing Machine CNC 6 Axis Faucet Polishing Machine
Precision polishing.
-Uniform polishing quality without deformation of the processed parts.
-High production. Four working stations work simultaneously,and with one time programming,the machine can finish the polishing and buffing jobs of four work pieces one time.
-Full auto,waxing system;
-Quick replacement of the fixtures.
-Quick replacement of the polishing mops.
-Cost-reduction in the amount of fixtures.
-Important reduction in mops and polishing compounds consumption.
-Polishing system avoiding excessive temperature of the parts during the working process.
-Quick and easy programming. Interactive Teach System.
-Finish the polishing/buffing jobs in any angle and position;
-High profitability and amortisation. One single operator can handle several machines by synchronizing the working cycles.
TECHNICAL PARAMETERS
| No | Items | Specifications |
| 1 | Dimensions (L*W*H) | 3000*3100*2900mm |
| 2 | Machine Power | 17KW |
| 3 | Rated Voltage | 380V |
| 4 | Max. Diameter of polishing wheel | 600mm |
| 5 | Min. Diameter of polishing wheel | 400mm |
| 6 | X-Axis travel (mm) | 1100 |
| 7 | Y-Axis travel (mm) | 900 |
| 8 | Z-Axis travel (mm) | 700 |
| 9 | U-Axis travel (mm) | ±60° |
| 10 | V-Axis travel (mm) | ±360° |
| 11 | W-Axis travel (mm) | ±360° |
| 12 | Max.speed X axis | 20m/min |
| 13 | Max.speed Y axis | 20m/min |
| 14 | Max.speed Z axis | 20m/min |
| 15 | Max.speed U axis | 30°/sec. |
| 16 | Max.speed V axis | 30°/sec. |
| 17 | Max.speed W axis | 30°/sec. |
