160KW Low Pressure Die Casting Machine 700KG/H For Brass Alloy Faucet

Product Description

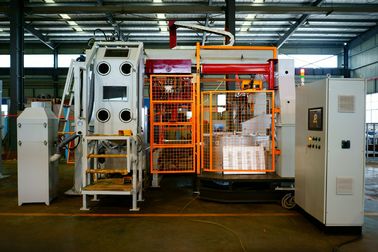

Low Pressure Die Casting Machine (LPDC) Brass Alloy Faucets Casting

Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.I.Fully automatic machine with two manipulators mounted on a rotary turning device and one furnace for the cost-effective production of high-quality casting products.

• Max die dimensions: 600 x400x240 mm

• Quick die change flanges

• Simple furnace control electrics

• Productivity per shift (8 hours): 700 castings
• Two dies can be used simultaneously, same or different

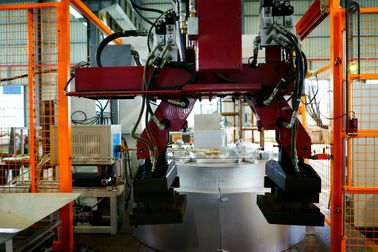

• Two independent rotary manipulators with electric and hydraulic driven movements
• One pressurized 160 kW furnace equipped with electro-mechanic lifting system
• Only one operator is required
• Maximum die diameter of 600 mm and weight of 200 Kg
• Two independent conveyors for casting unloading
• Stainless steel dipping tanks
• Drive by servo motor, with high precise, stable and efficiency performance.

• Two dies can be used simultaneously, same or different

• Pre-arrangement for Teleservice (technical remote assistance)
• Pre-arrangement for SPC (statistical process control - remote machine’s data collection)

• Large furnace melting rate, capacity is up to 700kg/h, for the operation with 2 manipulators working together.

II.EQUIPMENT STRUCTURE

The equipment consisting of main components:

• Manipulator
• casting device
• induction furnace
• unloading device
• graphite bath
• die cleaning device
• crane
• manipulators
• hydraulic and drives system
• pneumatic system
• riser tube heating system
• control system

other options are available on request
