Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | DZ |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1set |
| Packaging Details: | wooden case packing |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20sets/per month |
|
Detail Information |
|||
| Certification: | ISO,CE | Condition: | New |
|---|---|---|---|
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Overseas Service Center Available | Weight: | 2000kg |
| Color: | Customized | Voltage: | 220V / 380V / 415V |
| Function: | Making Sand Core | Warranty: | 1 Year |
| Sorting Accuracy: | ≥99.99% | ||

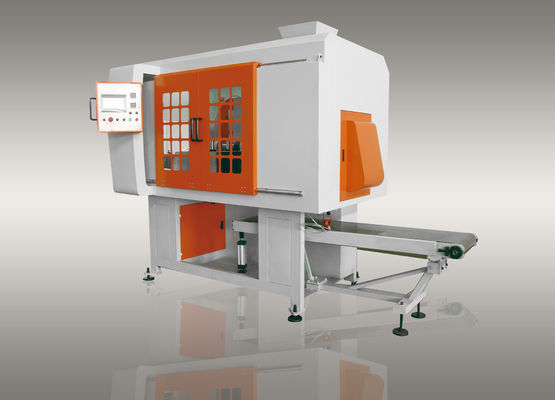

| High Light: | Accuracy 99.99% Core Shooter Machine,Core Shooter Machine 13.2KW,Pneumatic Sand Core Shooting Machine |
||
Product Description
| # | Item | Specification |
| 1 | Max. Weight of Sand Core | 8kg |
| 2 | Max. Size of Core Box ( L x W x H) | (450*330*220)mm |
| 3 | Heating Plate ( L x W) | (400*300)mm |
| 4 | Heating Power | 9.6kw |
| 5 | Downward Stroke of Ejection Head | ≤30mm |
| 6 | Stroke of Mold Opening | ≤300mm |
| 7 | Max. Stroke of Core Remove | 150mm |
| 8 | Conveyor ( L x W x H) | (2200*450*100)mm |
| 9 | Total Power | 13.2kw |
| 10 | Rising Angle of Conveyor | 2°~4° |
| 11 | Speed of Transportation | 72mm/s |
| 12 | Machine Size ( L x W x H) | (3500*1480*3400)mm |
| 13 | Speed of Lift (Single Time) | 35s |
| 14 | Weight of Lift ( Single Time) | 10kg |
| 15 | Total Weight | 2000kg |
| 16 |
Hydraulic pressure |
50Kg/cm² |
