Product Details:
|
|
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NONE |
| Certification: | CE |
| Model Number: | APM-4 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 1Set |
| Price: | Negotiable |
| Packaging Details: | Export standard, to be packed in new cases/cartons, suitable for long-distance ocean/air and inland transportation. |
| Delivery Time: | 20days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 30sets/per month |
|
Detail Information |
|||
| Weight: | 6000KG | Voltage: | 380V/50Hz |
|---|---|---|---|
| Condition: | New | After-sales Service Provided: | Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,Field Maintenance And Repair Service,Field Installation |
| Use: | Metal Polishing | Dimension(l*w*h): | 4400x3400x2900 |
| Control System: | PLC Servo Motor | Warranty: | 1 Year |
| Name: | Fully Automatic Stone Polishing Machine | Driver: | Lead Shine Driver |
| Usage: | Metal Stainless Steel Grinding And Buffing Machine | ||
| High Light: | cnc buffing machine,industrial metal polishing machine,Locks Knobs Cnc Buffing Machine |
||
Product Description

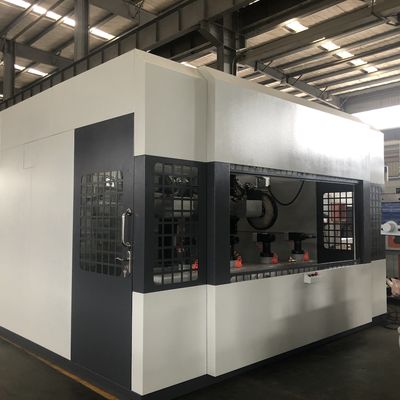

Automatic Polishing Machine for Door handle, locks and knobs, Auto-polishing system for Zinc Alloy, Brass metals
Applications:
The automatic polishing machines are born to replace the heavy-labor workmanship and improve quality stability, reduce production cost and for high yield benefits. Our machines have been offered to worldwidely in various industries:
1. faucets and sanitary fittings,
2. Locks and door knobs, plates and door handles,
3.kitchen ware and flatware, table ware, stainless steel sinks, dishes, Knives and cutlery,
4. stainless steel round tubes , squre bars, rectangular tube etc;
5. aluminum profiles;
6. automotive industry for wheels,
7. metal furniture parts;
8. valves and tools;
9. watch and jewelry;
10. medical implants;
11. musical instruments... more applicaitons availability are welcomed to consult us.
12. Max. product size: Φ 250*250mm; Max. tubes size: Φ30*1200mm * 17 pieces
Advanages:
| The automatic polishing machine is an exclusive polishing system consisting 4 manipulators with of 6 axises rotary; high flexibility and high product efficiency. | ||||||||||||
| With Italy PROMAX control system for high precision of control and high stability of move technology. | ||||||||||||
| Software: Programmable, with protable handed device, contains manually mode to simulate the workmanship polishing and record the track; automatically operating model is available with pre-settled parameters program | ||||||||||||
| Polishing pressure and wear compensation control performance: When the polishing cloth wheel is worn out, the system can detect that the torque becomes smaller and automatically the compensation in all directions. | ||||||||||||
| Linear speed compensation: When the outer diameter of the cloth wheel is reduced, the system automatically increases the speed and compensation; | ||||||||||||
| Solid polishing wax, to set up the wax spraying cycle time, frequency. | ||||||||||||
| Full digital control, polishing program parameters can be saved and adjusted at any time. | ||||||||||||
| CN/EN language display on Touch Panel. to set all parameters for an easy operation;fault codes display and alarm pages for quick troubles shooting and repair |
Key Components:
| 1 | Movement controller, PROMAX brand from Italy | ||||||
| 2 | Servo motor, PROMAX brand from Italy | ||||||
| 3 | Frequency conversion compensation system + control card, Delta Brand | ||||||
| 4 | Motor of polishing belt(cloth wheel) - Siemens | ||||||
| 5 | Main electronic components - Schneider | ||||||
| 6 | Linear Guilding rail and screws - HIWIN | ||||||
| 7 | Reducer -- Rossi from Italy | ||||||
| 8 | All bearings NSK | ||||||
| 9 | Gripper Steers - Taiwan | ||||||
Technical Parameters:
| NO. | DESCRIPTION | 4-STATIONS | ||||||||||
| 1 | Dimensions (L*W*H) MM | 5000*3400*3000 | ||||||||||
| 2 | Power(KW) | 35 | ||||||||||
| 3 | Voltage (v) | 380 | ||||||||||
| 4 | Max. Diameter of polishing wheel (MM) | 600 | ||||||||||
| 5 | Min. Diameter of polishing wheel | 400 | ||||||||||
| 6 | X axis Stroke | 1200 | ||||||||||
| 7 | Y axis Stroke | 1100 | ||||||||||
| 8 | Z axis Stroke | 700 | ||||||||||
| 9 | U axis Stroke | ±60° | ||||||||||
| 10 | V axis Stroke | ±360° | ||||||||||
| 11 | W axis Stroke | ±360° | ||||||||||
