Easy Operate Sand Core Shooting Machine Manual / Semi Automatic / Fully Automatic Type

Product Details:
Place of Origin: China(Mainland)
Brand Name: DZ
Certification: CE ISO
Model Number: HZ-360-S
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: Negotiable
Packaging Details: wood
Delivery Time: 2 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30 sets/per month

Detail Information

Condition: New Name: Sand Core Shooting Machine
Heating Plate: 9.6KW After-sales Service: Rovided: Overseas Third-party Support Available
Voltage: 380V Power: 9.6KW
High Light:

sand core making machine

,

cold box core shooter machine

Product Description

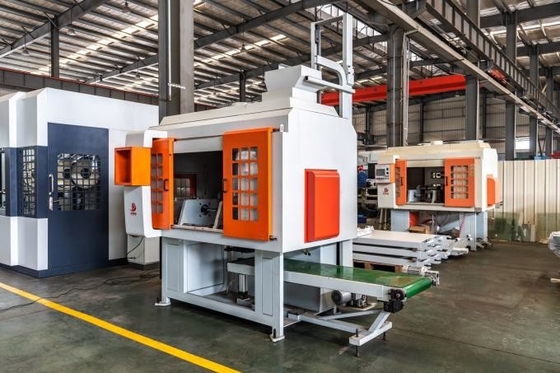

Easy Operate Sand Core Shooting Machine Manual / Semi Automatic / Fully Automatic Type





1. Device: PLC control (Siemens) (the machine has the function of automatic fault detection and analysis, and the failure analysis of the machine will be displayed on the touch screen in the form of pictures, and the Siemens touch screen).

2. Operation: pneumatic transmission.

3. Operation function: manual, semi-automatic and fully automatic (with conveyor belt) (the conveyor belt is a parallel lifting structure with a scale, which can quickly and accurately adjust the suitable height of the conveyor belt and the mold).

4. Power: the heating power is adjustable, and the heating tube is 12 * 1000W on each side.

5. Electric heating: automatic constant temperature (dynamic and static mold can be independently controlled) (heating can be reserved).

Mold shot sand surface automatic cleaning function.

6. Closing stroke: 300mm.

7. Pin stroke: 30mm (moving die mechanical, static die pneumatic).

8. Core pulling function: standard stroke 150mm, adjustable stroke (mechanical limit).

9. Maximum center distance of shot hole: 320mm.

10. Shortest cycle of theoretical operation:20 seconds.

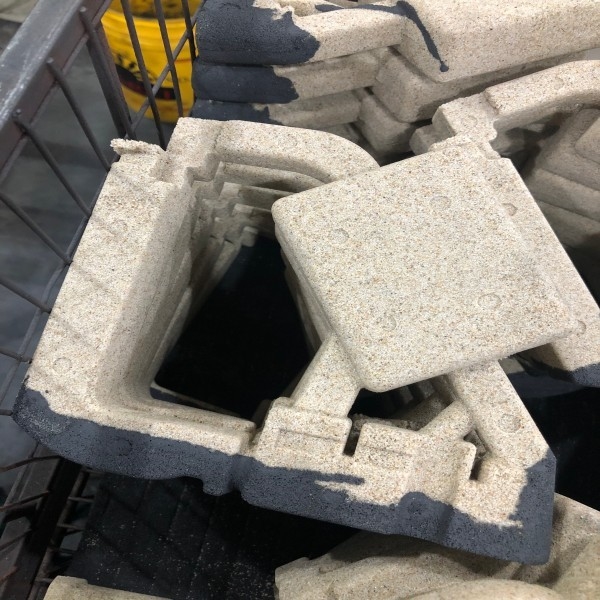

11. Maximum core mass: 4000g.

12. Slow start device to protect the stability of the machine.

13. Low working pressure alarm.

14. Tricolor warning light.



Technical Parameters

Item

Specification



Max. Weight of Sand Core

8kg



Max. Size of Core Box ( L x W x H)

(450*330*220)mm



Heating Plate ( L x W)

(400*300)mm



Heating Power

9.6kw



Downward Stroke of Ejection Head

≤30mm



Stroke of Mold Opening

≤300mm



Max. Stroke of Core Remove

150mm



Conveyor ( L x W x H)

(2200*450*100)mm



Total Power

11kw



Rising Angle of Conveyor

2°~4°



Speed of Transportation

72mm/s



Machine Size ( L x W x H)

(3500*1480*3400)mm



Speed of Lift (Single Time)

35s



Weight of Lift ( Single Time)

5~10kg



Total Weight

2000kg
