HZ-450 Gravity Die Casting Machine 2350 X 2100 X 1860 mm Dimension For Brass

Product Details:
Place of Origin: China(mainland)
Brand Name: DZ
Certification: CE
Model Number: HZ-450
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: Negotiable
Packaging Details: wood
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100/units per month

Detail Information

Color: Silvery Grey Condition: New
Warranty: 1 Year After-sales Service: Engineer Available Machinery Oversea
Dimension(L*W*H): 2350 X 2100 X 1860 Mm Technology: Gravity Die Casting Technology
High Light:

brass die casting machine

,

copper die casting machine

Product Description

HZ-450 Gravity Die Casting Machine 2350 X 2100 X 1860 mm Dimension For Brass





Advanages:



1) the circuit is controlled by PLC, the data is set by touch screen and all hydraulic components are imported.

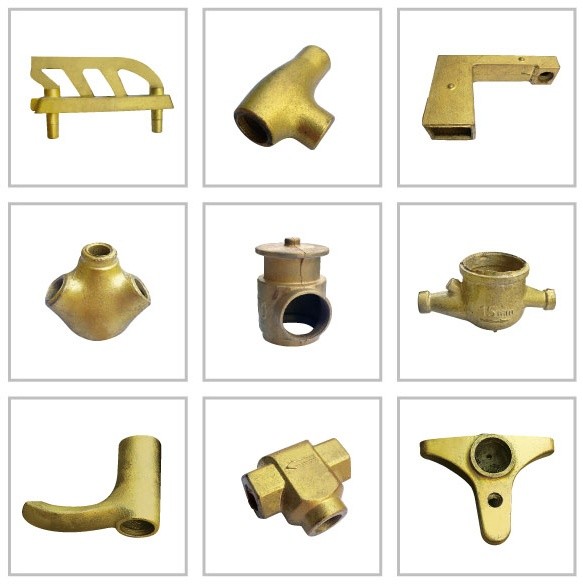

2) it is suitable for gravity die casting of brass and ferroalloy.
3) it can be direct casting, side casting, twice casting and mixed casting.
4) it is possible to individually adjust the cooling time of the die.
5) it facilitates the decomposition, combination and cleaning of dies.
6) It has two functions of manual and automatic circulation, the counter can be preset, to record the output of each shift.
7) there is a die adjustment space to facilitate the application of different dies, and reduce the requirements for the die size.
8) the machine can store the die casting operation program and set the password accordingly.



TECHNICAL PARAMETERS
1 MAX MOULD SIZE 450mm
2 Max Mould Wieght 130KG
3 Longest Merger Distance ≤250mm
4 Hydraulic Pressure 40-60KPa
5 Lateral Casting Angie 0º-90º
6 Frantal Casting Angle 0º-110º
7 Hydraulic Oil 163L
8 Toal Power 5.5KW
9 Instaling Top Care Device 20mm travel
10 Net Weight 1750KG
11 Size Of Appearance Of Machine 2250*2160*1560mm

Layout

HZ-450 Gravity Die Casting Machine 2350 X 2100 X 1860 mm Dimension For Brass 0

HZ-450 Gravity Die Casting Machine 2350 X 2100 X 1860 mm Dimension For Brass 1

HZ-450 Gravity Die Casting Machine 2350 X 2100 X 1860 mm Dimension For Brass 2



Click the link to view video:

https://www.youtube.com/watch?v=wfANIO7Hw-w&list=UUMEJdKjNOuRhrF8Kyh8fX_A&index=14
